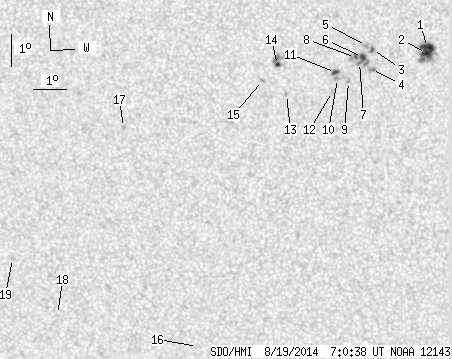

SDO HMI 2014-08-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.21 | 80.14 | 12.25 | 40.64 | -4.87 | 31.05 | 2.33 | 192.33 | 0.2127 | 660.0 | 349.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.01 | 28.01 | 4.06 | 14.18 | -4.02 | 33.47 | 4.76 | 203.79 | 0.2061 | 1174.2 | 678.4 | |
| 6.30 | -1.00 | 3.19 | -1.00 | -4.20 | 33.44 | 4.73 | 203.30 | 0.2088 | 1181.0 | 999999 | |
| 0.99 | 2.43 | 0.50 | 1.23 | -4.06 | 31.80 | 3.08 | 195.86 | 0.1971 | 1010.4 | 858.2 | |
| 0.00 | 3.60 | 0.00 | 1.82 | -4.68 | 31.77 | 3.05 | 194.91 | 0.2072 | 958.0 | 713.0 | |
| 0.00 | 2.70 | 0.00 | 1.36 | -3.94 | 31.61 | 2.90 | 195.13 | 0.1942 | 1024.0 | 856.5 | |
| 3.06 | 9.28 | 1.55 | 4.69 | -4.31 | 31.49 | 2.78 | 194.06 | 0.1999 | 1277.4 | 927.7 | |
| 0.36 | -6.00 | 0.18 | -6.00 | -4.46 | 31.40 | 2.69 | 193.43 | 0.2021 | 1105.5 | 999999 | |
| 1.17 | 4.77 | 0.59 | 2.41 | -4.31 | 31.28 | 2.56 | 193.02 | 0.1990 | 1133.8 | 803.8 | |
| 0.00 | 1.98 | 0.00 | 1.00 | -5.05 | 31.07 | 2.35 | 191.24 | 0.2107 | 874.0 | 785.6 | |
| 0.00 | 2.34 | 0.00 | 1.19 | -4.95 | 30.73 | 2.02 | 189.75 | 0.2080 | 887.0 | 778.5 | |
| 2.34 | 3.87 | 1.18 | 1.96 | -4.77 | 30.67 | 1.96 | 189.61 | 0.2047 | 1113.3 | 846.4 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -5.36 | 30.58 | 1.87 | 188.74 | 0.2144 | 811.0 | 619.9 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -5.44 | 29.18 | 0.46 | 182.17 | 0.2137 | -830.0 | -728.1 | |
| 1.98 | 10.27 | 1.00 | 5.19 | -4.51 | 28.91 | 0.19 | 180.97 | 0.1976 | -1086.5 | -917.1 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -5.01 | 28.45 | -0.27 | 178.70 | 0.2061 | 823.0 | 634.6 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -13.42 | 26.40 | -2.31 | 173.53 | 0.3497 | -16.0 | -2.6 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -6.49 | 24.20 | -4.52 | 161.20 | 0.2440 | -857.0 | -731.6 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -12.43 | 22.05 | -6.67 | 160.99 | 0.3494 | 0.0 | 0.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -10.65 | 20.69 | -8.02 | 155.38 | 0.3306 | -888.0 | -720.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
