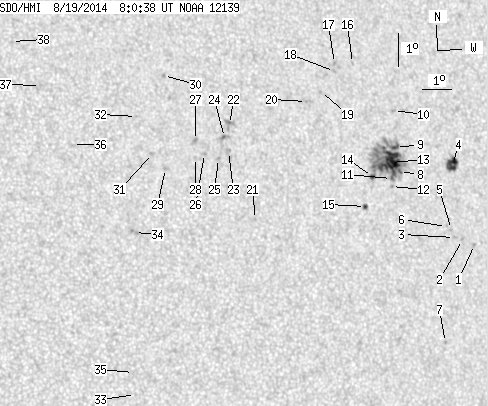

SDO HMI 2014-08-19 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.40 | 166.48 | 25.57 | 94.52 | 14.05 | 56.87 | 28.70 | 286.95 | 0.4885 | -425.5 | -233.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.79 | 11.32 | 60.76 | 32.59 | 280.37 | 0.5390 | -647.0 | -519.4 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 11.49 | 60.34 | 32.18 | 280.77 | 0.5333 | -800.0 | -634.9 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 11.57 | 60.06 | 31.89 | 280.97 | 0.5293 | -893.0 | -722.4 | |
| 9.73 | 14.14 | 5.70 | 8.29 | 13.80 | 60.30 | 32.14 | 285.06 | 0.5371 | -956.7 | -546.8 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 11.82 | 59.98 | 31.82 | 281.46 | 0.5286 | -679.0 | -600.6 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 11.93 | 59.81 | 31.65 | 281.68 | 0.5263 | -461.0 | -351.8 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 8.41 | 59.39 | 31.22 | 274.98 | 0.5167 | -796.0 | -609.1 | |
| 0.90 | 98.70 | 0.52 | 56.56 | 13.70 | 58.35 | 30.18 | 285.49 | 0.5089 | -556.6 | -542.4 | |
| 2.25 | -8.00 | 1.30 | -8.00 | 14.44 | 58.32 | 30.15 | 286.93 | 0.5104 | -831.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 15.57 | 58.42 | 30.25 | 289.06 | 0.5155 | -876.0 | -683.3 | |
| 0.27 | -8.00 | 0.15 | -8.00 | 13.50 | 58.03 | 29.87 | 285.21 | 0.5038 | -823.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 13.26 | 58.00 | 29.83 | 284.74 | 0.5027 | -514.0 | -527.4 | |
| 28.46 | -8.00 | 16.32 | -8.00 | 13.99 | 58.07 | 29.90 | 286.15 | 0.5056 | -1054.9 | 999999 | |
| 1.53 | -8.00 | 0.87 | -8.00 | 13.60 | 57.37 | 29.20 | 285.63 | 0.4943 | -944.2 | 999999 | |
| 1.26 | 2.61 | 0.71 | 1.48 | 12.71 | 57.00 | 28.83 | 283.94 | 0.4866 | 746.8 | 606.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 17.10 | 57.19 | 29.02 | 292.56 | 0.5040 | -553.0 | -471.7 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 17.13 | 56.54 | 28.37 | 292.98 | 0.4952 | -872.0 | -748.3 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 16.89 | 56.50 | 28.33 | 292.53 | 0.4936 | -824.0 | -684.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 16.30 | 55.90 | 27.73 | 291.70 | 0.4826 | -720.0 | -611.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 16.02 | 55.36 | 27.19 | 291.44 | 0.4738 | -828.0 | -703.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 12.52 | 53.14 | 24.97 | 284.94 | 0.4283 | 744.0 | 610.2 | |
| 0.00 | 7.02 | 0.00 | 3.85 | 15.46 | 52.58 | 24.41 | 291.92 | 0.4312 | 678.0 | 597.8 | |
| 0.00 | 3.24 | 0.00 | 1.77 | 14.63 | 52.44 | 24.28 | 290.15 | 0.4255 | 644.0 | 593.3 | |
| 0.00 | 3.60 | 0.00 | 1.97 | 15.07 | 52.36 | 24.19 | 291.19 | 0.4262 | 909.0 | 767.5 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 14.44 | 52.08 | 23.91 | 289.93 | 0.4192 | 890.0 | 721.5 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 14.61 | 51.62 | 23.45 | 290.63 | 0.4132 | 799.0 | 633.8 | |
| 0.00 | 2.25 | 0.00 | 1.22 | 15.02 | 51.36 | 23.19 | 291.77 | 0.4112 | 939.0 | 750.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 14.50 | 51.30 | 23.13 | 290.59 | 0.4080 | 667.0 | 575.6 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 14.21 | 50.25 | 22.08 | 290.61 | 0.3910 | 730.0 | 591.7 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 17.07 | 50.51 | 22.34 | 297.14 | 0.4101 | 928.0 | 776.7 | |
| 0.00 | 2.16 | 0.00 | 1.16 | 14.69 | 49.86 | 21.69 | 292.07 | 0.3874 | 856.0 | 640.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 15.85 | 49.44 | 21.28 | 295.24 | 0.3876 | 720.0 | 565.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 7.39 | 48.73 | 20.56 | 272.85 | 0.3503 | -11.0 | -1.0 | |
| 0.00 | 3.24 | 0.00 | 1.72 | 12.31 | 49.03 | 20.86 | 286.51 | 0.3645 | 738.0 | 709.6 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 8.06 | 48.70 | 20.53 | 274.77 | 0.3500 | 5.0 | 3.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 15.08 | 47.22 | 19.05 | 295.42 | 0.3504 | -13.0 | -9.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 16.93 | 46.33 | 18.16 | 301.26 | 0.3504 | 32.0 | 8.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.32 | 45.51 | 17.34 | 305.85 | 0.3505 | -14.0 | -5.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
