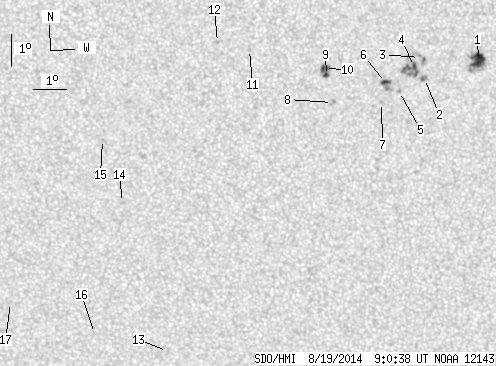

SDO HMI 2014-08-19 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.60 | 87.24 | 11.45 | 44.27 | -4.68 | 31.08 | 3.46 | 197.24 | 0.2140 | 424.8 | 521.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.06 | 25.75 | 6.62 | 13.07 | -4.13 | 33.57 | 5.95 | 208.63 | 0.2167 | 1184.1 | 710.7 | |
| 0.00 | 3.87 | 0.00 | 1.96 | -4.67 | 31.92 | 4.30 | 200.61 | 0.2134 | 905.0 | 728.5 | |
| 0.00 | 7.65 | 0.00 | 3.87 | -4.01 | 31.77 | 4.15 | 201.02 | 0.2020 | 667.0 | 767.7 | |
| 1.71 | 18.01 | 0.87 | 9.12 | -4.29 | 31.62 | 4.00 | 199.85 | 0.2056 | 1185.4 | 923.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -5.06 | 31.16 | 3.54 | 196.65 | 0.2157 | 912.0 | 834.9 | |
| 2.70 | 9.27 | 1.37 | 4.70 | -4.78 | 30.73 | 3.11 | 195.07 | 0.2091 | 1064.9 | 796.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -5.40 | 30.61 | 2.99 | 193.81 | 0.2188 | 741.0 | 638.9 | |
| 0.00 | 2.88 | 0.00 | 1.46 | -5.39 | 29.12 | 1.50 | 187.02 | 0.2141 | -973.0 | -807.0 | |
| 1.80 | 9.91 | 0.91 | 5.00 | -4.55 | 28.94 | 1.32 | 186.62 | 0.1994 | -998.3 | -870.1 | |
| 3.33 | -9.00 | 1.68 | -9.00 | -4.33 | 28.88 | 1.25 | 186.44 | 0.1956 | -1126.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -3.74 | 26.59 | -1.03 | 174.44 | 0.1851 | 724.0 | 558.2 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -3.53 | 25.62 | -2.00 | 169.04 | 0.1838 | 927.0 | 655.5 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -13.27 | 24.00 | -3.62 | 169.85 | 0.3503 | -21.0 | -4.3 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -8.53 | 22.68 | -4.94 | 162.13 | 0.2790 | -762.0 | -685.7 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -6.56 | 22.09 | -5.53 | 157.48 | 0.2511 | -687.0 | -490.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -12.71 | 21.73 | -5.89 | 163.30 | 0.3499 | 10.0 | 6.0 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -11.75 | 19.13 | -8.49 | 155.50 | 0.3502 | -9.0 | -4.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
