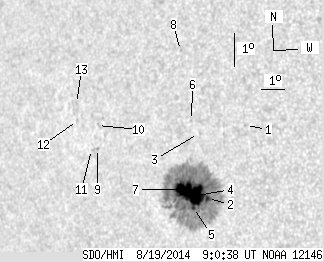

SDO HMI 2014-08-19 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.92 | 292.65 | 31.43 | 200.53 | 8.57 | 343.53 | -44.09 | 84.72 | 0.6932 | -802.4 | -319.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.54 | 10.76 | 345.54 | -42.08 | 81.48 | 0.6680 | 400.0 | 410.6 | |
| 2.16 | 285.90 | 1.46 | 195.64 | 8.43 | 344.30 | -43.32 | 84.95 | 0.6835 | -1165.2 | -335.2 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 10.36 | 343.62 | -44.00 | 82.13 | 0.6922 | -442.0 | -512.3 | |
| 23.32 | -2.00 | 15.91 | -2.00 | 8.48 | 343.83 | -43.79 | 84.86 | 0.6895 | -1178.3 | 999999 | |
| 1.26 | -2.00 | 0.86 | -2.00 | 8.11 | 343.75 | -43.87 | 85.40 | 0.6906 | -805.8 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 10.73 | 343.25 | -44.37 | 81.61 | 0.6968 | -567.0 | -467.8 | |
| 19.18 | -2.00 | 13.20 | -2.00 | 8.62 | 343.25 | -44.37 | 84.65 | 0.6967 | -938.0 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 12.80 | 342.34 | -45.28 | 78.70 | 0.7089 | -558.0 | -394.8 | |
| 0.00 | 1.08 | 0.00 | 0.80 | 9.53 | 339.25 | -48.37 | 83.30 | 0.7445 | 623.0 | 470.8 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 10.23 | 339.12 | -48.50 | 82.37 | 0.7460 | 455.0 | 468.6 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 9.48 | 338.98 | -48.64 | 83.37 | 0.7476 | 515.0 | 520.9 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 10.30 | 338.16 | -49.46 | 82.27 | 0.7569 | 464.0 | 420.8 | |
| 0.00 | 0.99 | 0.00 | 0.75 | 10.80 | 338.00 | -49.62 | 81.60 | 0.7586 | 190.0 | 179.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
