SDO HMI 2014-08-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.93 | 0.00 | 7.92 | 9.61 | 24.12 | -2.95 | 169.91 | 0.0871 | 248.6 | 88.9 | |
|
previous
or next observation for the same group /

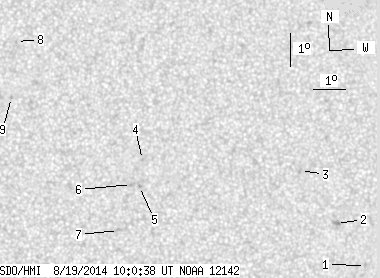

back to the solar disc SDO HMI 2014-08-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.67 | 7.32 | 29.20 | 2.13 | 283.33 | 0.0381 | -935.0 | -752.0 | |
| 0.00 | 3.24 | 0.00 | 1.61 | 8.60 | 28.32 | 1.25 | 325.14 | 0.0380 | -1066.0 | -850.4 | |
| 0.00 | 1.98 | 0.00 | 0.98 | 10.21 | 27.22 | 0.15 | 357.51 | 0.0594 | -712.0 | -607.0 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 10.53 | 22.34 | -4.73 | 51.27 | 0.1044 | 922.0 | 790.5 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 9.71 | 22.26 | -4.81 | 58.47 | 0.0974 | 969.0 | 807.7 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 9.77 | 22.01 | -5.06 | 59.21 | 0.1016 | 879.0 | 580.3 | |
| 0.00 | 2.25 | 0.00 | 1.12 | 8.37 | 21.63 | -5.44 | 73.70 | 0.0982 | 657.0 | 678.6 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 14.08 | 18.31 | -8.76 | 49.18 | 0.1961 | 684.0 | 532.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 12.36 | 18.21 | -8.86 | 56.93 | 0.1803 | 839.0 | 698.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
