SDO HMI 2014-08-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.00 | 84.35 | 9.13 | 42.86 | -4.86 | 31.04 | 3.97 | 199.25 | 0.2201 | 296.6 | 436.7 | |
|
previous
or next observation for the same group /

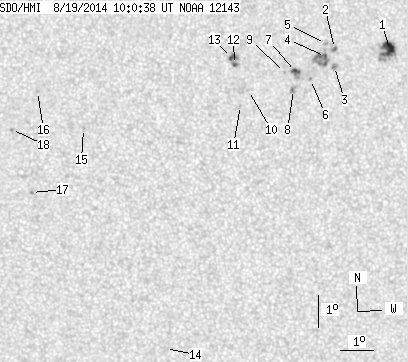

back to the solar disc SDO HMI 2014-08-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.26 | 25.39 | 5.21 | 12.90 | -4.11 | 33.63 | 6.56 | 211.12 | 0.2216 | 1183.8 | 772.9 | |
| 0.72 | 2.43 | 0.36 | 1.23 | -4.08 | 31.95 | 4.88 | 204.20 | 0.2079 | 1001.5 | 854.0 | |
| 0.00 | 3.60 | 0.00 | 1.83 | -4.64 | 31.96 | 4.88 | 203.16 | 0.2167 | 930.0 | 747.7 | |
| 1.53 | 17.74 | 0.78 | 8.99 | -4.33 | 31.68 | 4.61 | 202.53 | 0.2099 | 1174.6 | 930.8 | |
| 0.00 | 2.07 | 0.00 | 1.05 | -3.93 | 31.68 | 4.61 | 203.28 | 0.2036 | 950.0 | 794.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -5.04 | 31.22 | 4.15 | 199.37 | 0.2185 | 855.0 | 751.2 | |
| 2.88 | 7.20 | 1.46 | 3.65 | -4.78 | 30.77 | 3.69 | 197.72 | 0.2119 | 1135.1 | 838.3 | |
| 0.00 | 3.42 | 0.00 | 1.74 | -5.34 | 30.71 | 3.64 | 196.70 | 0.2207 | 950.0 | 832.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -4.81 | 30.43 | 3.36 | 196.16 | 0.2107 | 823.0 | 608.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.36 | 29.33 | 2.26 | 190.55 | 0.2156 | -839.0 | -661.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.83 | 29.09 | 2.02 | 189.10 | 0.2227 | -892.0 | -686.9 | |
| 0.81 | 9.99 | 0.41 | 5.05 | -4.55 | 28.91 | 1.83 | 189.19 | 0.2007 | -1088.9 | -901.1 | |
| 1.80 | -12.00 | 0.91 | -12.00 | -4.34 | 28.81 | 1.74 | 188.91 | 0.1967 | -1149.3 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.43 | -13.52 | 26.79 | -0.28 | 179.21 | 0.3491 | 9.0 | 10.3 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -6.54 | 24.30 | -2.77 | 168.24 | 0.2370 | -793.0 | -567.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -5.40 | 22.90 | -4.17 | 161.09 | 0.2244 | -911.0 | -699.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -8.56 | 22.68 | -4.39 | 164.06 | 0.2767 | -866.0 | -757.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -6.59 | 22.09 | -4.98 | 159.57 | 0.2481 | -877.0 | -745.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
