SDO HMI 2014-08-19 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.21 | 98.10 | 12.33 | 50.09 | -5.29 | 30.21 | 4.79 | 203.04 | 0.2390 | 285.6 | 357.5 | |
|
previous
or next observation for the same group /

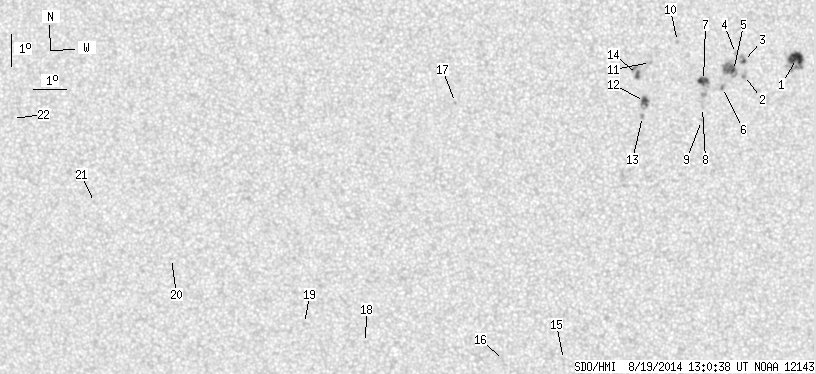

back to the solar disc SDO HMI 2014-08-19 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.43 | 23.49 | 5.83 | 11.98 | -4.11 | 33.73 | 8.31 | 217.42 | 0.2383 | 1140.9 | 742.1 | |
| 0.00 | 2.70 | 0.00 | 1.37 | -4.61 | 32.14 | 6.72 | 210.57 | 0.2303 | 881.0 | 748.3 | |
| 1.08 | 4.77 | 0.55 | 2.42 | -4.17 | 32.10 | 6.68 | 211.43 | 0.2236 | 1001.2 | 863.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -3.92 | 31.86 | 6.44 | 211.06 | 0.2178 | 790.0 | 531.5 | |
| 1.35 | 17.19 | 0.69 | 8.74 | -4.45 | 31.80 | 6.38 | 209.63 | 0.2250 | 1157.7 | 891.5 | |
| 0.00 | 2.43 | 0.00 | 1.24 | -4.97 | 31.47 | 6.05 | 207.25 | 0.2302 | 955.0 | 805.0 | |
| 5.13 | 13.32 | 2.61 | 6.77 | -4.74 | 30.88 | 5.46 | 205.38 | 0.2223 | 1124.4 | 803.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -5.58 | 30.86 | 5.44 | 203.76 | 0.2352 | 622.0 | 578.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -5.99 | 30.83 | 5.41 | 202.98 | 0.2413 | 751.0 | 682.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -3.53 | 30.08 | 4.66 | 204.35 | 0.1977 | -834.0 | -625.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -4.17 | 29.26 | 3.84 | 199.34 | 0.2027 | -823.0 | -664.0 | |
| 3.42 | 8.37 | 1.74 | 4.25 | -5.38 | 29.09 | 3.66 | 196.78 | 0.2214 | -1097.7 | -792.6 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -5.84 | 29.03 | 3.61 | 195.94 | 0.2288 | -902.0 | -755.5 | |
| 1.80 | 6.93 | 0.91 | 3.51 | -4.54 | 28.87 | 3.45 | 196.94 | 0.2066 | -1093.4 | -809.7 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -13.52 | 26.63 | 1.21 | 183.39 | 0.3498 | -7.0 | -3.7 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -13.55 | 24.76 | -0.66 | 178.16 | 0.3498 | -515.0 | -440.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.39 | 23.32 | -2.10 | 170.23 | 0.2155 | -824.0 | -685.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -12.99 | 20.46 | -4.96 | 166.03 | 0.3503 | 24.0 | 10.0 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -12.40 | 18.57 | -6.85 | 160.47 | 0.3500 | -19.0 | -9.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.40 | 14.47 | -10.95 | 147.55 | 0.3498 | -14.0 | -1.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -8.68 | 12.11 | -13.31 | 139.25 | 0.3503 | -27.0 | -11.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.13 | 9.61 | -15.82 | 129.03 | 0.3504 | 3.0 | -0.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
