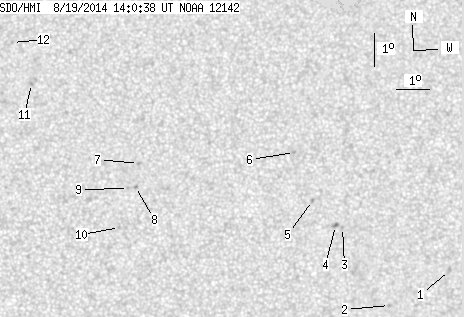

SDO HMI 2014-08-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.18 | 0.00 | 9.07 | 9.35 | 25.85 | 0.98 | 188.95 | 0.0913 | -16.4 | -130.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.79 | 0.00 | 1.39 | 7.14 | 31.91 | 7.04 | 273.04 | 0.1223 | -832.0 | -709.7 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 6.11 | 30.05 | 5.18 | 262.38 | 0.0910 | -887.0 | -628.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 8.49 | 28.64 | 3.77 | 294.25 | 0.0716 | -907.0 | -701.6 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 8.55 | 28.42 | 3.55 | 296.34 | 0.0687 | -1105.0 | -902.6 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 9.31 | 27.72 | 2.85 | 311.58 | 0.0660 | -932.0 | -703.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 10.78 | 27.18 | 2.31 | 330.12 | 0.0800 | -933.0 | -700.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.45 | 22.37 | -2.50 | 34.15 | 0.0768 | 1034.0 | 832.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 9.75 | 22.28 | -2.59 | 41.06 | 0.0681 | 946.0 | 916.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 9.69 | 22.06 | -2.80 | 43.93 | 0.0698 | 843.0 | 649.2 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.50 | 21.80 | -3.07 | 60.97 | 0.0609 | 851.0 | 627.7 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 12.86 | 19.01 | -5.86 | 43.27 | 0.1458 | 973.0 | 789.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 14.10 | 18.38 | -6.49 | 40.68 | 0.1688 | 752.0 | 528.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
