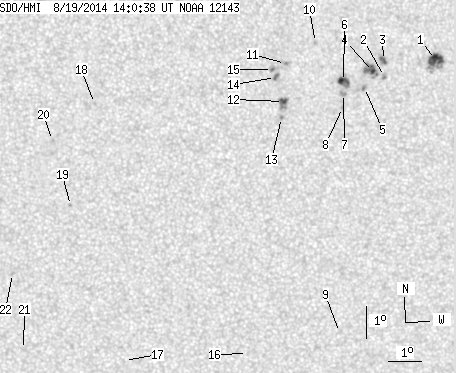

SDO HMI 2014-08-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.93 | 94.32 | 12.70 | 48.13 | -5.27 | 30.62 | 5.75 | 206.14 | 0.2396 | 192.6 | 254.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.34 | 22.23 | 5.79 | 11.36 | -4.12 | 33.73 | 8.86 | 219.21 | 0.2442 | 1152.3 | 774.8 | |
| 0.00 | 2.97 | 0.00 | 1.51 | -4.61 | 32.17 | 7.30 | 212.69 | 0.2355 | 806.0 | 688.1 | |
| 1.98 | 5.04 | 1.01 | 2.56 | -4.12 | 32.14 | 7.27 | 213.74 | 0.2281 | 1094.0 | 845.5 | |
| 1.89 | 14.67 | 0.96 | 7.46 | -4.45 | 31.83 | 6.96 | 211.83 | 0.2302 | 1141.9 | 921.8 | |
| 0.00 | 2.61 | 0.00 | 1.33 | -4.94 | 31.56 | 6.69 | 209.74 | 0.2350 | 920.0 | 745.8 | |
| 5.31 | 9.90 | 2.70 | 5.03 | -4.75 | 30.92 | 6.05 | 207.70 | 0.2268 | 1077.0 | 856.5 | |
| 0.00 | 3.33 | 0.00 | 1.70 | -5.12 | 30.92 | 6.05 | 206.96 | 0.2325 | 953.0 | 810.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.56 | 30.89 | 6.02 | 206.04 | 0.2389 | 762.0 | 623.8 | |
| 0.00 | 2.25 | 0.00 | 1.19 | -12.66 | 30.91 | 6.04 | 197.15 | 0.3499 | -11.0 | -0.8 | |
| 0.00 | 1.71 | 0.00 | 0.86 | -3.53 | 30.05 | 5.18 | 206.70 | 0.2016 | -838.0 | -559.4 | |
| 0.00 | 2.97 | 0.00 | 1.50 | -4.17 | 29.14 | 4.27 | 201.31 | 0.2053 | -947.0 | -765.2 | |
| 2.88 | 8.91 | 1.46 | 4.53 | -5.35 | 29.08 | 4.22 | 199.17 | 0.2239 | -1127.2 | -799.6 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -5.84 | 29.03 | 4.16 | 198.23 | 0.2316 | -985.0 | -802.2 | |
| 1.08 | 3.15 | 0.55 | 1.60 | -4.60 | 28.84 | 3.97 | 199.22 | 0.2104 | -1101.8 | -869.0 | |
| 0.45 | 3.33 | 0.23 | 1.69 | -4.35 | 28.74 | 3.87 | 199.19 | 0.2059 | -1095.8 | -695.9 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -13.30 | 28.05 | 3.18 | 188.92 | 0.3496 | -10.0 | -18.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -13.51 | 24.21 | -0.66 | 178.16 | 0.3492 | -33.0 | -18.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.39 | 23.32 | -1.55 | 172.76 | 0.2141 | -798.0 | -653.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -8.57 | 22.57 | -2.30 | 171.51 | 0.2696 | -839.0 | -641.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -6.54 | 22.04 | -2.83 | 168.00 | 0.2372 | -907.0 | -701.7 | |
| 0.00 | 2.52 | 0.00 | 1.33 | -13.17 | 21.06 | -3.80 | 169.29 | 0.3492 | 3.0 | 4.9 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -10.74 | 20.76 | -4.11 | 166.86 | 0.3109 | -729.0 | -545.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
