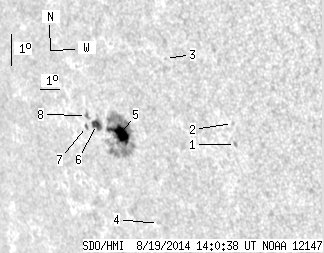

SDO HMI 2014-08-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.46 | 106.64 | 23.23 | 93.13 | -9.48 | 331.75 | -53.12 | 106.51 | 0.8249 | 601.1 | 235.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.46 | -9.32 | 337.39 | -47.48 | 108.27 | 0.7681 | 671.0 | 540.5 | |
| 0.00 | 1.26 | 0.00 | 0.97 | -8.66 | 337.37 | -47.50 | 107.44 | 0.7662 | 549.0 | 460.9 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -6.89 | 334.52 | -50.35 | 104.27 | 0.7910 | 534.0 | 502.0 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -12.22 | 333.04 | -51.83 | 110.15 | 0.8206 | -569.0 | -503.5 | |
| 19.71 | 86.84 | 17.17 | 75.78 | -9.50 | 331.79 | -53.08 | 106.55 | 0.8247 | 721.8 | 216.0 | |
| 5.67 | 10.08 | 5.08 | 9.03 | -9.33 | 330.58 | -54.29 | 105.98 | 0.8356 | 582.3 | 455.1 | |
| 0.54 | 1.89 | 0.49 | 1.72 | -9.45 | 330.01 | -54.86 | 105.95 | 0.8410 | 289.3 | 223.3 | |
| 0.54 | 3.42 | 0.49 | 3.10 | -9.10 | 330.10 | -54.77 | 105.57 | 0.8394 | 404.5 | 315.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
