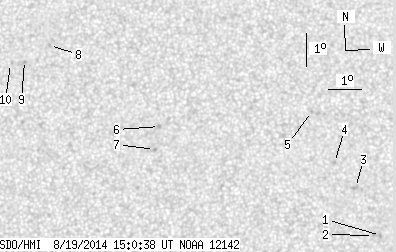

SDO HMI 2014-08-19 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.41 | 0.00 | 6.68 | 9.68 | 25.08 | 0.76 | 186.20 | 0.0903 | -82.2 | -133.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.76 | 7.08 | 29.21 | 4.89 | 273.32 | 0.0851 | -1051.0 | -821.0 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.08 | 28.99 | 4.68 | 273.47 | 0.0814 | -887.0 | -729.7 | |
| 0.00 | 2.79 | 0.00 | 1.39 | 8.55 | 28.46 | 4.14 | 293.01 | 0.0779 | -971.0 | -785.7 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.31 | 27.82 | 3.50 | 305.85 | 0.0747 | -918.0 | -662.2 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 10.86 | 27.13 | 2.81 | 325.69 | 0.0858 | -894.0 | -691.5 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 10.42 | 22.44 | -1.88 | 27.24 | 0.0709 | 958.0 | 742.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 9.72 | 22.29 | -2.03 | 34.65 | 0.0618 | 1034.0 | 885.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 12.86 | 18.99 | -5.32 | 40.56 | 0.1397 | 940.0 | 753.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 12.40 | 18.22 | -6.09 | 46.69 | 0.1432 | 621.0 | 654.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 12.30 | 17.79 | -6.53 | 49.12 | 0.1476 | 346.0 | 489.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
