SDO HMI 2014-08-19 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.88 | 320.28 | 35.44 | 206.68 | 8.58 | 343.44 | -40.32 | 84.78 | 0.6448 | -726.5 | -321.5 | |
|
previous
or next observation for the same group /

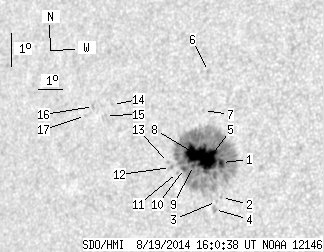

back to the solar disc SDO HMI 2014-08-19 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.61 | 302.19 | 1.67 | 194.73 | 8.48 | 344.32 | -39.44 | 84.95 | 0.6331 | -1154.1 | -349.3 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 7.42 | 344.44 | -39.32 | 86.63 | 0.6317 | -583.0 | -497.6 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 7.29 | 344.26 | -39.51 | 86.83 | 0.6342 | -393.0 | -297.4 | |
| 0.00 | 2.79 | 0.00 | 1.78 | 7.04 | 344.20 | -39.56 | 87.22 | 0.6351 | 620.0 | 475.9 | |
| 25.91 | -1.00 | 16.67 | -1.00 | 8.53 | 343.80 | -39.97 | 84.86 | 0.6401 | -1128.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.11 | 11.19 | 343.41 | -40.35 | 80.72 | 0.6459 | -437.0 | -436.7 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 10.00 | 343.40 | -40.37 | 82.57 | 0.6455 | -501.0 | -442.5 | |
| 23.21 | -1.00 | 15.05 | -1.00 | 8.67 | 343.21 | -40.55 | 84.63 | 0.6478 | -897.0 | 999999 | |
| 0.90 | -1.00 | 0.58 | -1.00 | 8.30 | 343.22 | -40.54 | 85.20 | 0.6477 | -448.5 | 999999 | |
| 2.25 | -1.00 | 1.47 | -1.00 | 8.19 | 342.87 | -40.89 | 85.37 | 0.6524 | -170.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.82 | 8.04 | 342.60 | -41.16 | 85.59 | 0.6559 | -403.0 | -264.1 | |
| 0.00 | 2.97 | 0.00 | 1.95 | 8.17 | 342.30 | -41.46 | 85.38 | 0.6598 | -267.0 | -235.9 | |
| 0.00 | 1.62 | 0.00 | 1.07 | 8.32 | 342.20 | -41.56 | 85.16 | 0.6611 | 74.0 | 39.8 | |
| 0.00 | 0.81 | 0.00 | 0.56 | 9.88 | 339.61 | -44.15 | 82.82 | 0.6939 | 673.0 | 598.6 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 9.53 | 339.37 | -44.39 | 83.34 | 0.6969 | 493.0 | 458.6 | |
| 0.00 | 1.98 | 0.00 | 1.38 | 9.76 | 338.81 | -44.95 | 83.01 | 0.7038 | 538.0 | 499.2 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 9.46 | 338.51 | -45.25 | 83.44 | 0.7075 | 474.0 | 394.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
