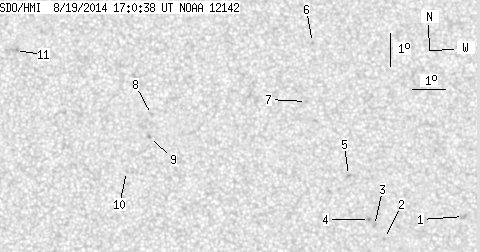

SDO HMI 2014-08-19 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.55 | 0.00 | 8.76 | 9.17 | 26.22 | 3.01 | 192.82 | 0.1084 | -251.6 | -208.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.15 | 0.00 | 1.58 | 7.21 | 32.01 | 8.80 | 273.03 | 0.1527 | -832.0 | -751.6 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 6.59 | 29.57 | 6.35 | 268.14 | 0.1105 | -853.0 | -676.2 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 6.98 | 29.26 | 6.05 | 271.81 | 0.1052 | -871.0 | -723.4 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 7.17 | 29.11 | 5.90 | 273.64 | 0.1027 | -1019.0 | -861.5 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 8.51 | 28.49 | 5.28 | 288.14 | 0.0961 | -1006.0 | -795.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 12.56 | 27.44 | 4.23 | 324.31 | 0.1239 | -853.0 | -711.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 10.77 | 27.22 | 4.01 | 315.09 | 0.0978 | -842.0 | -603.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 10.40 | 22.44 | -0.77 | 12.04 | 0.0639 | 792.0 | 638.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.70 | 22.38 | -0.83 | 16.00 | 0.0523 | 1055.0 | 857.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.67 | 21.67 | -1.54 | 39.62 | 0.0418 | 748.0 | 616.2 | |
| 0.00 | 3.06 | 0.00 | 1.53 | 12.32 | 18.21 | -5.00 | 41.54 | 0.1291 | 913.0 | 784.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
