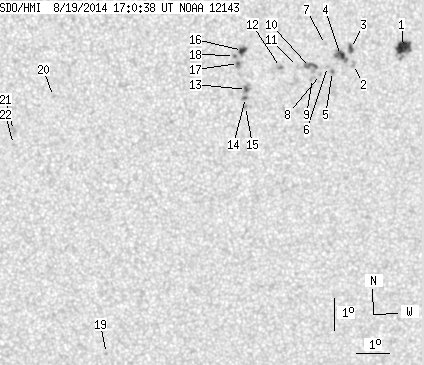

SDO HMI 2014-08-19 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.28 | 85.12 | 12.94 | 43.50 | -4.79 | 30.78 | 7.57 | 212.69 | 0.2461 | 289.5 | 263.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.50 | 20.60 | 6.42 | 10.58 | -4.18 | 33.86 | 10.65 | 224.30 | 0.2651 | 1119.1 | 715.5 | |
| 0.00 | 3.15 | 0.00 | 1.61 | -4.67 | 32.33 | 9.11 | 218.59 | 0.2543 | 823.0 | 695.9 | |
| 2.25 | 4.59 | 1.15 | 2.34 | -4.17 | 32.23 | 9.02 | 219.53 | 0.2467 | 1078.6 | 880.3 | |
| 4.68 | 10.61 | 2.39 | 5.42 | -4.38 | 31.92 | 8.71 | 218.03 | 0.2462 | 1182.7 | 842.0 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -4.87 | 31.68 | 8.47 | 216.06 | 0.2504 | 967.0 | 808.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -4.71 | 31.53 | 8.31 | 215.93 | 0.2467 | 702.0 | 574.8 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -4.03 | 31.46 | 8.25 | 217.38 | 0.2367 | 928.0 | 588.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -4.96 | 31.31 | 8.10 | 214.65 | 0.2480 | 1019.0 | 792.8 | |
| 0.00 | 2.52 | 0.00 | 1.29 | -5.08 | 31.07 | 7.86 | 213.56 | 0.2474 | 833.0 | 680.0 | |
| 0.00 | 9.54 | 0.00 | 4.87 | -4.74 | 31.00 | 7.79 | 214.12 | 0.2420 | 1080.0 | 955.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -4.70 | 30.60 | 7.39 | 212.81 | 0.2377 | 708.0 | 551.8 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -4.72 | 30.08 | 6.87 | 210.88 | 0.2334 | 929.0 | 775.5 | |
| 1.17 | 7.65 | 0.60 | 3.90 | -5.39 | 29.05 | 5.84 | 205.63 | 0.2351 | -1152.2 | -774.6 | |
| 0.45 | -13.00 | 0.23 | -13.00 | -5.63 | 29.02 | 5.81 | 205.07 | 0.2387 | -1043.0 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -5.91 | 29.02 | 5.81 | 204.59 | 0.2430 | -892.0 | -789.4 | |
| 3.15 | 5.31 | 1.60 | 2.69 | -4.18 | 28.92 | 5.70 | 207.51 | 0.2156 | -1072.9 | -742.8 | |
| 0.72 | 3.42 | 0.37 | 1.74 | -4.58 | 28.80 | 5.59 | 206.19 | 0.2208 | -1166.9 | -878.2 | |
| 0.36 | 1.35 | 0.18 | 0.68 | -4.33 | 28.67 | 5.46 | 206.18 | 0.2161 | -1043.8 | -928.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -13.70 | 24.80 | 1.59 | 184.40 | 0.3533 | -783.0 | -648.9 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -5.56 | 23.16 | -0.05 | 179.76 | 0.2156 | -784.0 | -602.2 | |
| 0.00 | 3.69 | 0.00 | 1.88 | -6.62 | 21.94 | -1.27 | 174.57 | 0.2347 | -822.0 | -776.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -7.06 | 21.93 | -1.28 | 174.74 | 0.2421 | -771.0 | -556.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
