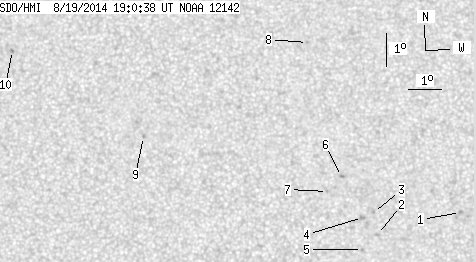

SDO HMI 2014-08-19 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.49 | 0.00 | 7.23 | 8.37 | 27.61 | 5.51 | 260.64 | 0.1212 | -511.2 | -411.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.86 | 7.28 | 32.15 | 10.04 | 273.17 | 0.1740 | -927.0 | -761.9 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 6.67 | 29.57 | 7.47 | 269.10 | 0.1296 | -877.0 | -652.9 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 7.34 | 29.46 | 7.35 | 274.34 | 0.1279 | -974.0 | -722.9 | |
| 0.00 | 2.70 | 0.00 | 1.35 | 7.19 | 29.12 | 7.01 | 273.30 | 0.1219 | -862.0 | -704.0 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 6.22 | 29.10 | 7.00 | 265.30 | 0.1221 | -913.0 | -677.3 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 8.44 | 28.49 | 6.39 | 284.62 | 0.1142 | -984.0 | -850.9 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 7.99 | 28.05 | 5.95 | 281.44 | 0.1052 | -896.0 | -659.6 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 12.53 | 27.52 | 5.42 | 317.24 | 0.1363 | -844.0 | -639.6 | |
| 0.00 | 1.35 | 0.00 | 0.67 | 9.71 | 22.41 | 0.31 | 353.96 | 0.0505 | 1052.0 | 835.6 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 12.31 | 18.35 | -3.75 | 33.80 | 0.1155 | 1113.0 | 903.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
