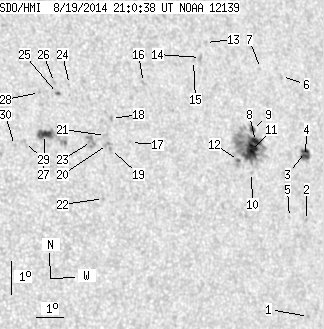

SDO HMI 2014-08-19 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.58 | 155.90 | 24.96 | 95.05 | 14.40 | 56.40 | 35.40 | 285.39 | 0.5833 | -325.4 | -199.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.74 | 8.84 | 59.60 | 38.60 | 275.60 | 0.6217 | -721.0 | -533.0 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 11.74 | 59.95 | 38.95 | 280.25 | 0.6278 | -735.0 | -590.1 | |
| 3.06 | 10.61 | 1.96 | 6.79 | 13.84 | 60.30 | 39.31 | 283.52 | 0.6348 | -814.3 | -562.1 | |
| 3.33 | -3.00 | 2.13 | -3.00 | 13.68 | 60.27 | 39.27 | 283.28 | 0.6342 | -902.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 11.88 | 59.30 | 38.30 | 280.54 | 0.6192 | -635.0 | -450.0 | |
| 0.00 | 1.89 | 0.00 | 1.21 | 16.19 | 59.85 | 38.85 | 287.30 | 0.6332 | -528.0 | -455.5 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 16.49 | 59.07 | 38.07 | 287.97 | 0.6238 | -631.0 | -516.4 | |
| 5.76 | 82.03 | 3.59 | 51.00 | 14.28 | 58.39 | 37.40 | 284.59 | 0.6104 | -825.8 | -488.3 | |
| 2.07 | -8.00 | 1.29 | -8.00 | 14.66 | 58.35 | 37.35 | 285.20 | 0.6105 | -770.7 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 13.35 | 58.06 | 37.06 | 283.13 | 0.6043 | -681.0 | -509.0 | |
| 17.81 | -8.00 | 11.07 | -8.00 | 13.99 | 58.14 | 37.14 | 284.16 | 0.6065 | -1018.2 | 999999 | |
| 0.72 | 3.78 | 0.44 | 2.33 | 13.75 | 57.62 | 36.63 | 283.87 | 0.5991 | -887.2 | -654.6 | |
| 0.00 | 1.44 | 0.00 | 0.89 | 17.44 | 57.10 | 36.10 | 290.09 | 0.6007 | -410.0 | -386.5 | |
| 0.00 | 2.43 | 0.00 | 1.49 | 16.99 | 56.80 | 35.80 | 289.46 | 0.5955 | -791.0 | -625.6 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 16.92 | 56.51 | 35.51 | 289.44 | 0.5915 | -621.0 | -494.2 | |
| 0.00 | 1.80 | 0.00 | 1.08 | 16.37 | 54.47 | 33.47 | 289.22 | 0.5625 | -720.0 | -563.2 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 14.58 | 53.65 | 32.66 | 286.30 | 0.5462 | 450.0 | 422.7 | |
| 0.00 | 1.80 | 0.00 | 1.06 | 15.35 | 53.08 | 32.08 | 287.90 | 0.5403 | -790.0 | -658.3 | |
| 0.00 | 1.71 | 0.00 | 1.00 | 14.41 | 52.88 | 31.89 | 286.24 | 0.5349 | 744.0 | 593.1 | |
| 0.00 | 2.88 | 0.00 | 1.68 | 14.57 | 52.80 | 31.80 | 286.56 | 0.5342 | 743.0 | 670.8 | |
| 0.00 | 2.16 | 0.00 | 1.26 | 14.85 | 52.77 | 31.77 | 287.08 | 0.5345 | 569.0 | 437.4 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 12.93 | 52.40 | 31.40 | 283.62 | 0.5246 | 668.0 | 498.5 | |
| 0.00 | 7.11 | 0.00 | 4.13 | 14.70 | 52.23 | 31.23 | 286.99 | 0.5265 | 324.0 | 315.8 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 16.48 | 51.72 | 30.73 | 290.52 | 0.5252 | 476.0 | 388.6 | |
| 0.54 | 1.71 | 0.31 | 0.99 | 16.23 | 51.24 | 30.24 | 290.28 | 0.5175 | 751.8 | 590.3 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 16.58 | 51.19 | 30.19 | 290.94 | 0.5181 | 565.0 | 468.0 | |
| 7.29 | 19.43 | 4.17 | 11.15 | 15.01 | 50.57 | 29.57 | 288.23 | 0.5038 | 939.7 | 612.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 16.30 | 50.59 | 29.60 | 290.71 | 0.5088 | 852.0 | 705.9 | |
| 0.00 | 2.97 | 0.00 | 1.69 | 14.81 | 49.82 | 28.82 | 288.14 | 0.4924 | 485.0 | 584.8 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 14.74 | 49.45 | 28.45 | 288.16 | 0.4868 | 579.0 | 524.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
