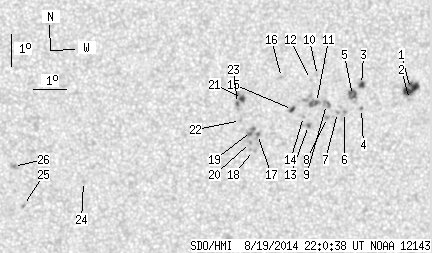

SDO HMI 2014-08-19 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.52 | 88.52 | 10.08 | 45.57 | -4.77 | 30.69 | 10.25 | 220.93 | 0.2720 | 263.7 | 238.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.97 | 14.84 | 5.70 | 7.71 | -4.20 | 33.99 | 13.55 | 231.11 | 0.3015 | 1061.1 | 835.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -4.54 | 33.97 | 13.52 | 230.19 | 0.3048 | 705.0 | 613.3 | |
| 1.98 | 3.51 | 1.02 | 1.81 | -4.04 | 32.46 | 12.02 | 228.11 | 0.2802 | 999.2 | 795.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -4.78 | 32.47 | 12.03 | 226.22 | 0.2889 | 762.0 | 659.1 | |
| 0.00 | 8.99 | 0.00 | 4.64 | -4.37 | 32.19 | 11.74 | 226.57 | 0.2807 | 1047.0 | 889.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -4.89 | 31.95 | 11.50 | 224.65 | 0.2840 | 1005.0 | 809.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -4.88 | 31.73 | 11.28 | 224.11 | 0.2813 | 974.0 | 829.2 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -5.03 | 31.42 | 10.98 | 222.95 | 0.2796 | 887.0 | 738.9 | |
| 0.00 | 5.31 | 0.00 | 2.73 | -4.63 | 31.38 | 10.94 | 223.86 | 0.2742 | 868.0 | 830.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -3.72 | 31.09 | 10.65 | 225.45 | 0.2599 | 796.0 | 556.1 | |
| 0.90 | 12.32 | 0.46 | 6.33 | -4.56 | 31.07 | 10.63 | 223.20 | 0.2698 | 1093.6 | 824.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -3.84 | 30.88 | 10.43 | 224.54 | 0.2588 | 709.0 | 552.5 | |
| 0.54 | 2.07 | 0.28 | 1.07 | -5.26 | 30.84 | 10.39 | 220.82 | 0.2760 | 985.0 | 856.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -4.98 | 30.68 | 10.23 | 221.05 | 0.2707 | 871.0 | 741.5 | |
| 1.62 | 3.06 | 0.83 | 1.57 | -4.76 | 30.33 | 9.89 | 220.63 | 0.2640 | 827.9 | 612.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -3.76 | 29.98 | 9.54 | 222.17 | 0.2474 | -855.0 | -639.0 | |
| 0.45 | 2.88 | 0.23 | 1.48 | -5.51 | 29.26 | 8.82 | 215.66 | 0.2630 | -933.2 | -659.1 | |
| 0.00 | 2.88 | 0.00 | 1.48 | -6.00 | 29.15 | 8.70 | 214.23 | 0.2687 | -540.0 | -578.2 | |
| 0.00 | 4.68 | 0.00 | 2.40 | -5.41 | 29.08 | 8.63 | 215.29 | 0.2598 | -1080.0 | -953.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -5.75 | 29.05 | 8.61 | 214.47 | 0.2643 | -972.0 | -821.4 | |
| 2.25 | 8.99 | 1.15 | 4.59 | -4.38 | 28.79 | 8.34 | 216.77 | 0.2428 | -1103.0 | -752.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -5.06 | 28.73 | 8.29 | 214.98 | 0.2517 | -838.0 | -653.6 | |
| 0.81 | -21.00 | 0.41 | -21.00 | -4.54 | 28.64 | 8.19 | 215.89 | 0.2434 | -1024.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -6.90 | 23.94 | 3.49 | 194.29 | 0.2461 | -788.0 | -615.3 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -7.63 | 22.11 | 1.66 | 186.55 | 0.2529 | -784.0 | -723.2 | |
| 0.00 | 3.06 | 0.00 | 1.56 | -6.41 | 21.80 | 1.35 | 185.84 | 0.2317 | -1060.0 | -846.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
