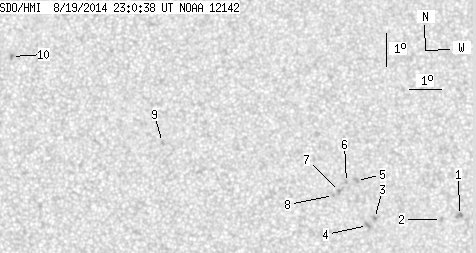

SDO HMI 2014-08-19 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.32 | 0.00 | 11.21 | 8.27 | 28.26 | 8.37 | 255.61 | 0.1582 | -575.5 | -523.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-19 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.51 | 0.00 | 1.78 | 7.34 | 32.15 | 12.26 | 273.02 | 0.2118 | -922.0 | -785.9 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 7.23 | 31.58 | 11.69 | 272.56 | 0.2021 | -808.0 | -639.4 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 7.31 | 29.50 | 9.61 | 273.31 | 0.1666 | -1013.0 | -840.1 | |
| 0.00 | 2.88 | 0.00 | 1.45 | 7.10 | 29.28 | 9.39 | 272.08 | 0.1627 | -959.0 | -777.2 | |
| 0.00 | 2.61 | 0.00 | 1.31 | 8.47 | 28.97 | 9.08 | 280.77 | 0.1596 | -996.0 | -787.8 | |
| 0.00 | 1.26 | 0.00 | 0.63 | 8.42 | 28.66 | 8.77 | 280.76 | 0.1542 | -1044.0 | -800.6 | |
| 0.00 | 3.69 | 0.00 | 1.85 | 8.15 | 28.44 | 8.54 | 279.22 | 0.1497 | -1032.0 | -744.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 8.03 | 28.25 | 8.35 | 278.60 | 0.1462 | -930.0 | -790.0 | |
| 0.00 | 1.62 | 0.00 | 0.80 | 9.71 | 23.00 | 3.11 | 313.06 | 0.0734 | 851.0 | 629.1 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 12.34 | 18.34 | -1.55 | 15.47 | 0.0996 | 1098.0 | 894.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
