SDO HMI 2014-08-20 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.88 | 134.61 | 24.55 | 83.70 | 14.47 | 56.35 | 37.01 | 285.13 | 0.6052 | -203.9 | -157.6 | |
|
previous
or next observation for the same group /

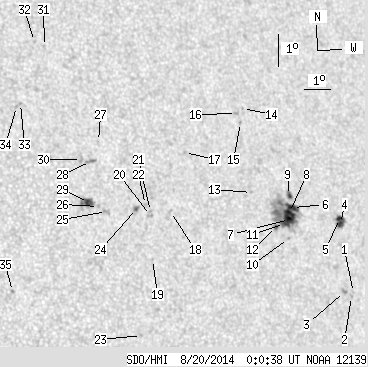

back to the solar disc SDO HMI 2014-08-20 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.35 | 11.56 | 60.37 | 41.03 | 279.77 | 0.6549 | -528.0 | -463.0 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 11.45 | 60.27 | 40.93 | 279.60 | 0.6535 | -543.0 | -541.3 | |
| 0.00 | 2.61 | 0.00 | 1.70 | 11.62 | 60.02 | 40.67 | 279.89 | 0.6503 | -862.0 | -685.6 | |
| 3.60 | 9.54 | 2.35 | 6.24 | 13.69 | 60.26 | 40.92 | 283.03 | 0.6554 | -805.0 | -514.6 | |
| 3.24 | -4.00 | 2.12 | -4.00 | 13.85 | 60.25 | 40.91 | 283.27 | 0.6555 | -735.1 | 999999 | |
| 6.48 | 69.72 | 4.13 | 44.29 | 14.33 | 58.43 | 39.08 | 284.31 | 0.6327 | -732.7 | -544.8 | |
| 8.01 | -6.00 | 5.09 | -6.00 | 13.97 | 58.23 | 38.89 | 283.78 | 0.6296 | -947.7 | 999999 | |
| 5.58 | -6.00 | 3.55 | -6.00 | 14.18 | 58.27 | 38.93 | 284.11 | 0.6305 | -1006.4 | 999999 | |
| 1.62 | 3.33 | 1.03 | 2.12 | 14.70 | 58.38 | 39.04 | 284.90 | 0.6327 | -720.3 | -623.2 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 13.40 | 58.08 | 38.74 | 282.90 | 0.6267 | -627.0 | -586.8 | |
| 3.78 | -6.00 | 2.40 | -6.00 | 13.86 | 58.01 | 38.67 | 283.65 | 0.6265 | -854.3 | 999999 | |
| 0.99 | -6.00 | 0.62 | -6.00 | 13.80 | 57.68 | 38.33 | 283.60 | 0.6220 | -894.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 14.90 | 56.90 | 37.56 | 285.53 | 0.6137 | -608.0 | -474.5 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 17.49 | 57.13 | 37.79 | 289.61 | 0.6227 | -446.0 | -365.5 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 17.06 | 56.95 | 37.60 | 289.00 | 0.6192 | -735.0 | -589.3 | |
| 0.00 | 1.89 | 0.00 | 1.19 | 17.35 | 56.85 | 37.51 | 289.48 | 0.6188 | -744.0 | -580.2 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 16.30 | 54.57 | 35.22 | 288.48 | 0.5859 | -670.0 | -581.1 | |
| 0.00 | 1.62 | 0.00 | 0.97 | 14.54 | 53.69 | 34.35 | 285.72 | 0.5695 | 634.0 | 533.7 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 13.12 | 52.77 | 33.43 | 283.45 | 0.5538 | 611.0 | 508.6 | |
| 0.00 | 2.34 | 0.00 | 1.39 | 14.47 | 52.92 | 33.58 | 285.81 | 0.5587 | 689.0 | 622.9 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 14.59 | 52.94 | 33.60 | 286.02 | 0.5593 | 673.0 | 541.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 14.81 | 52.79 | 33.45 | 286.46 | 0.5578 | 629.0 | 483.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 10.84 | 52.04 | 32.70 | 279.42 | 0.5400 | 631.0 | 456.9 | |
| 0.72 | 2.79 | 0.43 | 1.66 | 14.71 | 52.43 | 33.09 | 286.39 | 0.5526 | 760.8 | 567.6 | |
| 0.00 | 3.69 | 0.00 | 2.16 | 14.69 | 51.31 | 31.97 | 286.71 | 0.5368 | 730.0 | 547.2 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 14.86 | 51.04 | 31.70 | 287.11 | 0.5335 | 376.0 | 259.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 16.85 | 51.40 | 32.06 | 290.59 | 0.5447 | 579.0 | 458.6 | |
| 0.00 | 4.05 | 0.00 | 2.37 | 16.25 | 50.99 | 31.65 | 289.69 | 0.5371 | 666.0 | 611.1 | |
| 4.86 | 12.06 | 2.83 | 7.02 | 15.01 | 50.70 | 31.36 | 287.50 | 0.5291 | 824.0 | 716.1 | |
| 0.00 | 2.34 | 0.00 | 1.37 | 16.34 | 50.67 | 31.33 | 289.97 | 0.5329 | 711.0 | 610.9 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 19.89 | 50.00 | 30.65 | 296.70 | 0.5388 | 628.0 | 532.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 20.07 | 49.66 | 30.32 | 297.21 | 0.5352 | 590.0 | 534.5 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 18.19 | 48.76 | 29.42 | 294.33 | 0.5142 | 680.0 | 550.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 18.10 | 48.60 | 29.26 | 294.26 | 0.5116 | 665.0 | 592.3 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 12.46 | 47.60 | 28.26 | 283.55 | 0.4774 | 762.0 | 573.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
