SDO HMI 2014-08-20 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.49 | 318.34 | 35.35 | 192.35 | 8.77 | 343.52 | -35.27 | 84.50 | 0.5755 | -830.2 | -380.5 | |
|
previous
or next observation for the same group /

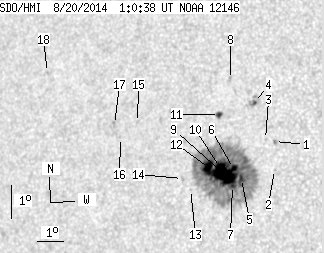

back to the solar disc SDO HMI 2014-08-20 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.06 | 9.75 | 345.37 | -33.42 | 82.68 | 0.5494 | 726.0 | 653.4 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 8.90 | 345.46 | -33.33 | 84.22 | 0.5478 | 445.0 | 396.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 9.79 | 345.03 | -33.76 | 82.63 | 0.5543 | 561.0 | 379.8 | |
| 1.08 | 6.03 | 0.65 | 3.61 | 10.88 | 344.49 | -34.30 | 80.72 | 0.5629 | 753.5 | 592.9 | |
| 3.60 | 295.57 | 2.16 | 178.45 | 8.55 | 344.27 | -34.52 | 84.88 | 0.5648 | -1276.5 | -428.3 | |
| 3.42 | -5.00 | 2.06 | -5.00 | 8.83 | 343.94 | -34.85 | 84.39 | 0.5695 | -1303.2 | 999999 | |
| 3.24 | -5.00 | 1.95 | -5.00 | 8.32 | 343.96 | -34.83 | 85.30 | 0.5692 | -1046.6 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.36 | 11.52 | 343.49 | -35.30 | 79.72 | 0.5776 | -657.0 | -600.3 | |
| 22.67 | -5.00 | 13.68 | -5.00 | 8.57 | 343.71 | -35.08 | 84.85 | 0.5728 | -1297.3 | 999999 | |
| 9.36 | -5.00 | 5.66 | -5.00 | 8.83 | 343.45 | -35.34 | 84.40 | 0.5764 | -1190.5 | 999999 | |
| 2.34 | 3.87 | 1.42 | 2.35 | 10.43 | 343.22 | -35.57 | 81.63 | 0.5804 | -874.0 | -615.9 | |
| 12.78 | -5.00 | 7.77 | -5.00 | 8.77 | 343.04 | -35.75 | 84.51 | 0.5822 | -954.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 8.09 | 342.39 | -36.40 | 85.68 | 0.5913 | -365.0 | -267.7 | |
| 0.00 | 1.89 | 0.00 | 1.16 | 8.40 | 342.06 | -36.73 | 85.15 | 0.5960 | -581.0 | -375.7 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 9.97 | 340.11 | -38.68 | 82.60 | 0.6230 | 538.0 | 545.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 9.47 | 339.50 | -39.29 | 83.42 | 0.6310 | 438.0 | 392.0 | |
| 0.00 | 1.98 | 0.00 | 1.27 | 9.84 | 339.21 | -39.58 | 82.84 | 0.6350 | 660.0 | 609.5 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 11.20 | 336.24 | -42.55 | 80.88 | 0.6741 | 722.0 | 612.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
