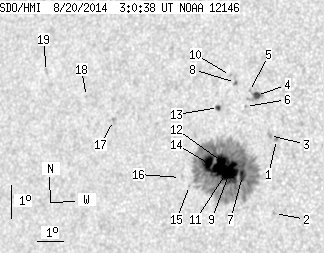

SDO HMI 2014-08-20 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.10 | 334.34 | 37.02 | 199.46 | 8.86 | 343.50 | -34.19 | 84.32 | 0.5601 | -769.7 | -355.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.10 | 9.70 | 345.40 | -32.29 | 82.68 | 0.5330 | 799.0 | 612.8 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 7.46 | 345.54 | -32.15 | 86.91 | 0.5305 | 273.0 | 290.7 | |
| 0.00 | 2.61 | 0.00 | 1.53 | 9.81 | 345.14 | -32.56 | 82.50 | 0.5369 | 702.0 | 419.1 | |
| 3.24 | 8.28 | 1.91 | 4.89 | 10.99 | 344.52 | -33.17 | 80.39 | 0.5469 | 865.2 | 536.2 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 11.09 | 344.25 | -33.45 | 80.23 | 0.5509 | 367.0 | 339.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 10.63 | 344.16 | -33.54 | 81.09 | 0.5517 | 533.0 | 367.5 | |
| 4.77 | 305.54 | 2.82 | 182.14 | 8.53 | 344.28 | -33.42 | 84.90 | 0.5489 | -1296.4 | -409.7 | |
| 0.36 | 2.52 | 0.21 | 1.50 | 11.33 | 343.69 | -34.00 | 79.88 | 0.5591 | -913.0 | -718.6 | |
| 4.05 | -7.00 | 2.41 | -7.00 | 8.84 | 343.88 | -33.82 | 84.35 | 0.5547 | -1313.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 11.53 | 343.48 | -34.21 | 79.55 | 0.5623 | -768.0 | -677.7 | |
| 23.58 | -7.00 | 14.04 | -7.00 | 8.59 | 343.68 | -34.01 | 84.81 | 0.5575 | -1305.8 | 999999 | |
| 11.97 | -7.00 | 7.15 | -7.00 | 8.91 | 343.46 | -34.23 | 84.24 | 0.5607 | -1153.0 | 999999 | |
| 1.35 | 2.79 | 0.81 | 1.67 | 10.53 | 343.16 | -34.53 | 81.36 | 0.5658 | -970.4 | -773.8 | |
| 12.78 | -7.00 | 7.67 | -7.00 | 8.79 | 343.03 | -34.67 | 84.47 | 0.5669 | -927.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 8.10 | 342.35 | -35.35 | 85.67 | 0.5765 | -521.0 | -424.1 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 8.32 | 341.98 | -35.71 | 85.29 | 0.5816 | -312.0 | -367.4 | |
| 0.00 | 1.98 | 0.00 | 1.25 | 9.86 | 339.21 | -38.48 | 82.76 | 0.6202 | 762.0 | 609.7 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 10.51 | 338.04 | -39.65 | 81.78 | 0.6361 | 576.0 | 457.0 | |
| 0.00 | 2.25 | 0.00 | 1.48 | 11.15 | 336.31 | -41.38 | 80.90 | 0.6592 | 608.0 | 468.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
