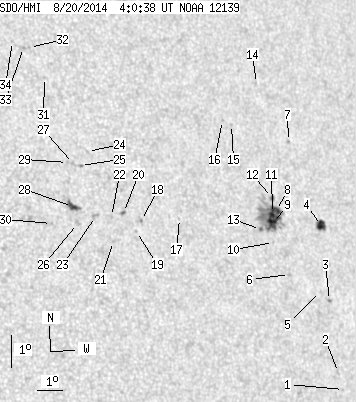

SDO HMI 2014-08-20 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.03 | 118.45 | 21.53 | 76.25 | 14.38 | 56.79 | 39.65 | 284.44 | 0.6398 | -181.3 | -234.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.42 | 8.72 | 60.26 | 43.12 | 275.43 | 0.6810 | -548.0 | -469.3 | |
| 0.00 | 1.89 | 0.00 | 1.27 | 9.25 | 60.13 | 42.99 | 276.21 | 0.6793 | -613.0 | -550.1 | |
| 0.00 | 1.35 | 0.00 | 0.91 | 11.45 | 60.13 | 42.99 | 279.46 | 0.6798 | -721.0 | -645.0 | |
| 6.48 | 8.64 | 4.38 | 5.84 | 13.75 | 60.27 | 43.13 | 282.82 | 0.6834 | -735.3 | -499.7 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 11.75 | 59.81 | 42.66 | 279.93 | 0.6759 | -595.0 | -518.7 | |
| 0.00 | 1.35 | 0.00 | 0.89 | 12.37 | 58.63 | 41.48 | 280.95 | 0.6613 | -170.0 | -121.1 | |
| 0.00 | 1.26 | 0.00 | 0.85 | 16.41 | 59.53 | 42.38 | 286.83 | 0.6779 | -684.0 | -556.9 | |
| 4.23 | 69.13 | 2.79 | 45.34 | 14.35 | 58.50 | 41.36 | 283.95 | 0.6619 | -668.0 | -551.9 | |
| 10.80 | -8.00 | 7.09 | -8.00 | 13.99 | 58.30 | 41.16 | 283.45 | 0.6589 | -883.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.47 | 13.39 | 58.17 | 41.03 | 282.55 | 0.6565 | -499.0 | -421.6 | |
| 5.04 | -8.00 | 3.31 | -8.00 | 14.27 | 58.32 | 41.18 | 283.86 | 0.6595 | -1008.3 | 999999 | |
| 1.08 | -8.00 | 0.71 | -8.00 | 14.76 | 58.43 | 41.29 | 284.58 | 0.6616 | -711.6 | 999999 | |
| 0.54 | -8.00 | 0.35 | -8.00 | 13.82 | 57.72 | 40.58 | 283.27 | 0.6513 | -880.5 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 18.28 | 58.69 | 41.54 | 289.77 | 0.6715 | -489.0 | -359.7 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 17.11 | 57.30 | 40.16 | 288.37 | 0.6517 | -483.0 | -383.1 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 17.26 | 56.97 | 39.82 | 288.68 | 0.6479 | -642.0 | -561.6 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 14.40 | 54.57 | 37.43 | 284.74 | 0.6109 | 417.0 | 344.3 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 14.44 | 53.09 | 35.95 | 285.14 | 0.5911 | 636.0 | 599.9 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 14.12 | 52.84 | 35.69 | 284.66 | 0.5871 | 595.0 | 418.8 | |
| 0.45 | 1.71 | 0.27 | 1.04 | 14.73 | 52.45 | 35.31 | 285.79 | 0.5831 | 781.6 | 612.6 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 13.88 | 51.91 | 34.77 | 284.45 | 0.5739 | 767.0 | 613.4 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 14.64 | 51.97 | 34.83 | 285.76 | 0.5763 | 356.0 | 373.4 | |
| 0.00 | 3.42 | 0.00 | 2.06 | 14.68 | 51.37 | 34.23 | 285.99 | 0.5682 | 678.0 | 553.1 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 16.68 | 51.45 | 34.31 | 289.43 | 0.5747 | 529.0 | 416.9 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 16.27 | 51.10 | 33.96 | 288.84 | 0.5687 | 517.0 | 441.2 | |
| 0.00 | 3.33 | 0.00 | 1.98 | 14.51 | 50.66 | 33.51 | 285.90 | 0.5579 | 622.0 | 505.5 | |
| 0.00 | 2.07 | 0.00 | 1.24 | 16.35 | 50.85 | 33.70 | 289.07 | 0.5655 | 717.0 | 559.3 | |
| 4.41 | 7.65 | 2.63 | 4.56 | 15.04 | 50.56 | 33.42 | 286.87 | 0.5579 | 847.1 | 602.1 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 16.40 | 50.63 | 33.49 | 289.23 | 0.5627 | 641.0 | 562.6 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 14.58 | 49.69 | 32.55 | 286.30 | 0.5446 | 779.0 | 662.6 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 19.06 | 50.32 | 33.17 | 293.94 | 0.5680 | 552.0 | 447.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 20.02 | 49.96 | 32.82 | 295.74 | 0.5675 | 542.0 | 508.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 20.04 | 49.74 | 32.59 | 295.88 | 0.5646 | 660.0 | 573.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 20.25 | 49.36 | 32.22 | 296.44 | 0.5608 | 618.0 | 507.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
