SDO HMI 2014-08-20 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.84 | 98.10 | 8.26 | 51.26 | -5.24 | 29.51 | 12.37 | 224.52 | 0.3169 | 229.3 | 247.3 | |
|
previous
or next observation for the same group /

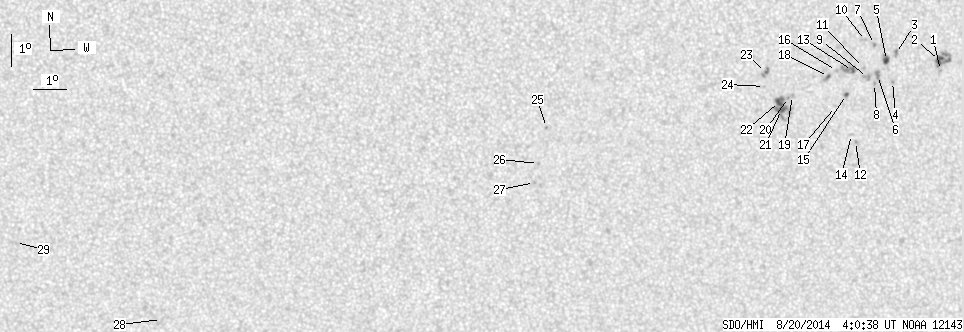

back to the solar disc SDO HMI 2014-08-20 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.71 | -4.64 | 34.11 | 16.96 | 236.25 | 0.3513 | 751.0 | 626.1 | |
| 3.51 | 15.75 | 1.85 | 8.32 | -4.33 | 34.07 | 16.93 | 236.93 | 0.3479 | 1136.3 | 778.6 | |
| 0.00 | 2.97 | 0.00 | 1.56 | -4.06 | 32.67 | 15.53 | 235.24 | 0.3264 | 856.0 | 731.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -4.93 | 32.59 | 15.45 | 232.98 | 0.3338 | 760.0 | 640.6 | |
| 2.79 | 6.30 | 1.46 | 3.30 | -4.27 | 32.39 | 15.25 | 234.22 | 0.3246 | 1023.3 | 734.4 | |
| 0.00 | 4.86 | 0.00 | 2.55 | -4.72 | 32.11 | 14.97 | 232.59 | 0.3255 | 1109.0 | 864.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -3.76 | 32.00 | 14.86 | 234.80 | 0.3145 | 945.0 | 818.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -4.97 | 32.03 | 14.88 | 231.83 | 0.3269 | 941.0 | 820.7 | |
| 0.00 | 4.14 | 0.00 | 2.17 | -4.78 | 31.80 | 14.66 | 231.86 | 0.3220 | 980.0 | 832.2 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -3.63 | 31.72 | 14.57 | 234.61 | 0.3094 | 762.0 | 538.5 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -4.46 | 31.67 | 14.52 | 232.38 | 0.3170 | 747.0 | 722.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -6.75 | 31.47 | 14.33 | 226.67 | 0.3393 | 718.0 | 601.0 | |
| 1.08 | 8.91 | 0.56 | 4.64 | -4.54 | 31.32 | 14.18 | 231.50 | 0.3134 | 967.1 | 845.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -6.53 | 31.34 | 14.20 | 226.88 | 0.3352 | 672.0 | 526.7 | |
| 0.72 | 1.98 | 0.38 | 1.03 | -5.28 | 31.15 | 14.01 | 229.35 | 0.3191 | 860.5 | 669.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -4.53 | 30.82 | 13.68 | 230.51 | 0.3068 | 823.0 | 709.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -5.64 | 30.81 | 13.67 | 227.79 | 0.3189 | 714.0 | 512.0 | |
| 0.63 | 3.69 | 0.33 | 1.92 | -4.71 | 30.57 | 13.43 | 229.54 | 0.3056 | 885.7 | 563.6 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -5.26 | 29.46 | 12.32 | 225.68 | 0.2982 | -581.0 | -326.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -5.32 | 29.34 | 12.19 | 225.25 | 0.2974 | -788.0 | -711.9 | |
| 2.88 | 20.70 | 1.49 | 10.74 | -5.69 | 29.13 | 11.98 | 223.88 | 0.2994 | -997.3 | -751.6 | |
| 4.23 | -21.00 | 2.19 | -21.00 | -5.44 | 29.06 | 11.92 | 224.30 | 0.2956 | -1112.8 | 999999 | |
| 0.00 | 4.77 | 0.00 | 2.46 | -4.53 | 28.61 | 11.46 | 225.42 | 0.2794 | -1084.0 | -852.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -4.96 | 28.58 | 11.44 | 224.28 | 0.2843 | -772.0 | -508.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -6.11 | 21.88 | 4.74 | 200.13 | 0.2399 | -980.0 | -822.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -7.23 | 21.65 | 4.50 | 197.76 | 0.2566 | -977.0 | -792.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -7.83 | 21.53 | 4.39 | 196.65 | 0.2656 | -751.0 | -569.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -12.19 | 9.99 | -7.16 | 159.49 | 0.3492 | -7.0 | -1.9 | |
| 0.00 | 4.23 | 0.00 | 2.24 | -9.82 | 5.49 | -11.65 | 145.05 | 0.3490 | -22.0 | -5.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
