SDO HMI 2014-08-20 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.48 | 98.82 | 8.10 | 51.74 | -5.26 | 30.23 | 13.63 | 228.14 | 0.3217 | 125.3 | 192.3 | |
|
previous
or next observation for the same group /

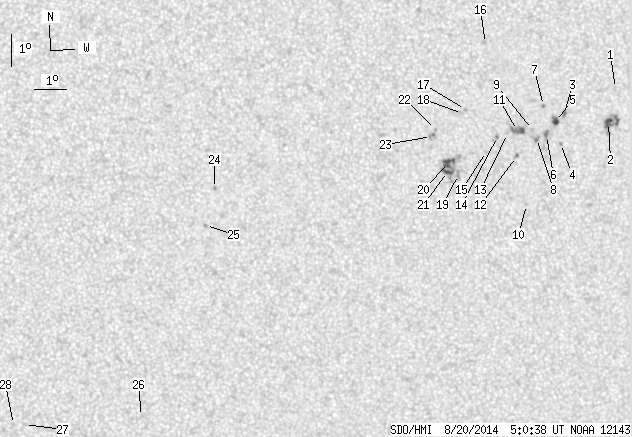

back to the solar disc SDO HMI 2014-08-20 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.48 | -3.31 | 34.33 | 17.73 | 240.64 | 0.3504 | -5.0 | 5.7 | |
| 3.87 | 17.10 | 2.05 | 9.07 | -4.35 | 34.13 | 17.53 | 237.81 | 0.3565 | 1092.7 | 746.8 | |
| 0.54 | 2.79 | 0.28 | 1.47 | -3.99 | 32.72 | 16.13 | 236.45 | 0.3339 | 838.7 | 704.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -4.95 | 32.61 | 16.02 | 233.95 | 0.3415 | 760.0 | 663.2 | |
| 2.70 | 5.04 | 1.42 | 2.65 | -4.26 | 32.44 | 15.85 | 235.31 | 0.3326 | 1013.0 | 792.0 | |
| 0.00 | 4.23 | 0.00 | 2.22 | -4.68 | 32.17 | 15.57 | 233.79 | 0.3330 | 1088.0 | 890.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -3.75 | 32.05 | 15.46 | 235.91 | 0.3225 | 892.0 | 757.9 | |
| 0.00 | 3.51 | 0.00 | 1.84 | -4.77 | 31.85 | 15.26 | 233.02 | 0.3297 | 926.0 | 853.1 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -4.48 | 31.72 | 15.12 | 233.47 | 0.3251 | 892.0 | 677.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -6.81 | 31.59 | 14.99 | 227.86 | 0.3479 | 766.0 | 589.6 | |
| 0.00 | 10.35 | 0.00 | 5.41 | -4.50 | 31.25 | 14.65 | 232.54 | 0.3191 | 1043.0 | 867.2 | |
| 0.00 | 2.34 | 0.00 | 1.23 | -5.30 | 31.23 | 14.64 | 230.56 | 0.3272 | 863.0 | 684.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -4.58 | 30.93 | 14.34 | 231.72 | 0.3159 | 811.0 | 634.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -4.66 | 30.62 | 14.03 | 230.89 | 0.3127 | 835.0 | 738.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -5.12 | 30.29 | 13.69 | 229.08 | 0.3133 | 320.0 | 276.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -1.79 | 30.21 | 13.61 | 237.98 | 0.2787 | 583.0 | 443.4 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -3.80 | 29.61 | 13.01 | 230.98 | 0.2904 | -812.0 | -683.9 | |
| 0.00 | 1.98 | 0.00 | 1.02 | -3.92 | 29.51 | 12.92 | 230.45 | 0.2905 | -597.0 | -433.7 | |
| 0.00 | 4.23 | 0.00 | 2.20 | -5.81 | 29.42 | 12.83 | 225.58 | 0.3106 | -655.0 | -597.8 | |
| 5.22 | 23.67 | 2.71 | 12.31 | -5.43 | 29.10 | 12.51 | 225.74 | 0.3024 | -1100.4 | -722.0 | |
| 3.15 | -20.00 | 1.64 | -20.00 | -5.70 | 29.08 | 12.48 | 225.02 | 0.3054 | -947.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -4.39 | 28.68 | 12.08 | 227.30 | 0.2853 | -1069.0 | -834.5 | |
| 0.00 | 3.15 | 0.00 | 1.63 | -4.60 | 28.56 | 11.96 | 226.46 | 0.2863 | -904.0 | -826.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -6.09 | 21.89 | 5.29 | 202.29 | 0.2429 | -970.0 | -733.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -7.24 | 21.62 | 5.03 | 199.66 | 0.2595 | -999.0 | -775.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -13.29 | 19.71 | 3.12 | 188.73 | 0.3500 | 43.0 | 19.7 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -13.53 | 16.06 | -0.53 | 178.51 | 0.3502 | -8.0 | -1.2 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -13.53 | 15.72 | -0.88 | 177.56 | 0.3504 | 5.0 | -1.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
