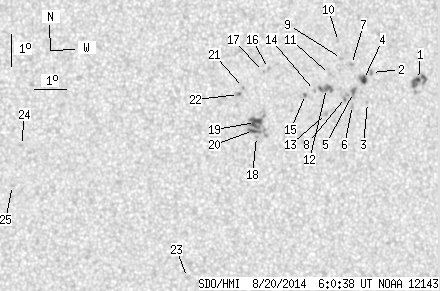

SDO HMI 2014-08-20 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.77 | 87.58 | 7.21 | 45.92 | -4.98 | 30.72 | 14.67 | 230.95 | 0.3265 | 116.7 | 211.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 13.32 | 0.57 | 7.09 | -4.32 | 34.25 | 18.20 | 238.88 | 0.3654 | 1190.6 | 826.5 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -4.04 | 32.75 | 16.70 | 237.26 | 0.3422 | 864.0 | 761.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -4.97 | 32.64 | 16.59 | 234.87 | 0.3493 | 878.0 | 706.4 | |
| 2.88 | 5.22 | 1.52 | 2.75 | -4.25 | 32.50 | 16.45 | 236.35 | 0.3407 | 987.6 | 827.2 | |
| 0.00 | 4.23 | 0.00 | 2.23 | -4.64 | 32.19 | 16.14 | 234.88 | 0.3402 | 1074.0 | 874.1 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -5.04 | 32.16 | 16.12 | 233.89 | 0.3438 | 774.0 | 626.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -3.77 | 32.11 | 16.06 | 236.89 | 0.3310 | 965.0 | 815.0 | |
| 0.00 | 3.51 | 0.00 | 1.85 | -4.79 | 31.94 | 15.89 | 234.10 | 0.3383 | 941.0 | 881.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -3.58 | 31.79 | 15.74 | 236.85 | 0.3248 | 959.0 | 742.0 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -3.05 | 31.68 | 15.64 | 238.05 | 0.3186 | 787.0 | 582.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -4.06 | 31.42 | 15.37 | 234.97 | 0.3242 | 895.0 | 660.3 | |
| 0.00 | 9.18 | 0.00 | 4.81 | -4.49 | 31.33 | 15.28 | 233.74 | 0.3273 | 1077.0 | 895.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -5.26 | 31.35 | 15.30 | 231.91 | 0.3353 | 864.0 | 798.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -4.54 | 30.95 | 14.90 | 232.92 | 0.3228 | 748.0 | 576.4 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -4.65 | 30.67 | 14.62 | 232.10 | 0.3203 | 794.0 | 642.8 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -3.81 | 29.50 | 13.45 | 231.88 | 0.2963 | -907.0 | -710.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -3.90 | 29.34 | 13.29 | 231.32 | 0.2952 | -838.0 | -678.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -5.91 | 29.16 | 13.11 | 225.98 | 0.3152 | -685.0 | -584.8 | |
| 5.94 | 26.83 | 3.09 | 13.98 | -5.47 | 29.12 | 13.07 | 226.90 | 0.3097 | -1075.0 | -723.4 | |
| 1.80 | -19.00 | 0.94 | -19.00 | -5.72 | 29.06 | 13.01 | 226.20 | 0.3118 | -964.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -4.38 | 28.72 | 12.68 | 228.71 | 0.2925 | -843.0 | -735.1 | |
| 0.00 | 2.25 | 0.00 | 1.17 | -4.59 | 28.57 | 12.52 | 227.82 | 0.2930 | -1086.0 | -867.0 | |
| 2.07 | 2.07 | 1.09 | 1.09 | -10.28 | 27.13 | 11.08 | 212.86 | 0.3500 | -3.6 | -6.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -6.03 | 21.89 | 5.84 | 204.45 | 0.2457 | -1039.0 | -734.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -7.28 | 21.63 | 5.58 | 201.58 | 0.2634 | -995.0 | -728.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
