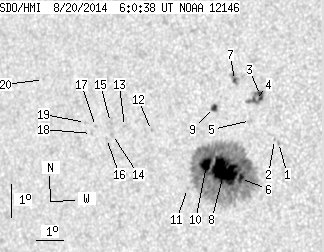

SDO HMI 2014-08-20 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.34 | 355.03 | 38.84 | 208.15 | 8.98 | 343.47 | -32.58 | 84.05 | 0.5369 | -679.5 | -330.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.67 | 9.72 | 345.49 | -30.56 | 82.49 | 0.5075 | 918.0 | 731.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 9.80 | 345.34 | -30.71 | 82.34 | 0.5098 | 522.0 | 455.4 | |
| 3.69 | 15.12 | 2.14 | 8.78 | 11.11 | 344.69 | -31.36 | 79.89 | 0.5208 | 907.4 | 604.8 | |
| 0.90 | -3.00 | 0.52 | -3.00 | 10.94 | 344.49 | -31.56 | 80.24 | 0.5235 | 746.0 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.10 | 10.33 | 344.41 | -31.63 | 81.43 | 0.5239 | -711.0 | -352.4 | |
| 3.51 | 313.09 | 2.04 | 183.31 | 8.55 | 344.23 | -31.82 | 84.84 | 0.5255 | -1280.7 | -400.7 | |
| 1.17 | 6.66 | 0.69 | 3.90 | 11.50 | 343.69 | -32.36 | 79.31 | 0.5358 | -956.9 | -719.1 | |
| 44.92 | -6.00 | 26.29 | -6.00 | 8.75 | 343.63 | -32.42 | 84.47 | 0.5344 | -1258.9 | 999999 | |
| 2.79 | 4.59 | 1.64 | 2.71 | 10.64 | 343.06 | -32.99 | 81.01 | 0.5438 | -957.4 | -715.7 | |
| 9.36 | -6.00 | 5.52 | -6.00 | 8.89 | 342.96 | -33.09 | 84.23 | 0.5442 | -947.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 8.12 | 342.34 | -33.71 | 85.65 | 0.5532 | -673.0 | -439.4 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 9.79 | 340.81 | -35.24 | 82.73 | 0.5753 | 652.0 | 508.8 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 9.84 | 339.78 | -36.27 | 82.70 | 0.5898 | 703.0 | 591.1 | |
| 0.00 | 1.98 | 0.00 | 1.22 | 9.57 | 339.35 | -36.69 | 83.18 | 0.5956 | 673.0 | 560.6 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 9.93 | 339.23 | -36.82 | 82.58 | 0.5975 | 756.0 | 653.9 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 9.43 | 339.14 | -36.91 | 83.42 | 0.5986 | 551.0 | 508.2 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 9.76 | 338.67 | -37.38 | 82.88 | 0.6051 | 700.0 | 530.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 9.54 | 338.54 | -37.50 | 83.25 | 0.6068 | 514.0 | 385.8 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 9.86 | 338.27 | -37.78 | 82.74 | 0.6107 | 544.0 | 453.4 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 11.04 | 336.43 | -39.62 | 80.95 | 0.6360 | 463.0 | 386.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
