groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12139 23.94 88.93 16.21 58.45 14.59 56.54 41.04 284.54 0.6577 -207.4 -168.5


previous   or   next   observation for the same group / back to the solar disc

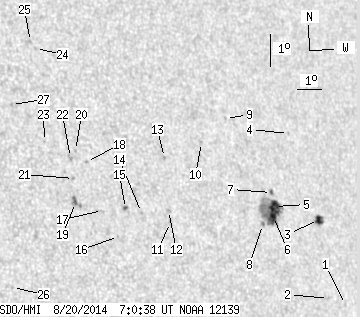

SDO HMI 2014-08-20 07:00:38 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.35 0.00 0.94 11.13 60.81 45.31 278.89 0.7084 -564.0 -421.9
2 0.00 0.90 0.00 0.62 11.37 60.12 44.62 279.27 0.7000 -611.0 -569.9
3 4.86 7.74 3.38 5.38 13.80 60.22 44.72 282.72 0.7028 -752.3 -420.5
4 0.00 0.90 0.00 0.62 16.51 59.62 44.12 286.67 0.6990 -454.0 -379.9
5 8.73 44.47 5.89 29.92 14.34 58.44 42.94 283.72 0.6816 -839.7 -621.1
6 9.00 -5.00 6.06 -5.00 14.04 58.32 42.82 283.30 0.6799 -907.8 999999
7 0.72 2.34 0.49 1.58 14.78 58.41 42.91 284.36 0.6819 -664.9 -546.4
8 0.00 1.98 0.00 1.32 13.84 57.81 42.31 283.06 0.6732 -848.0 -745.4
9 0.00 0.90 0.00 0.60 17.18 57.08 41.58 288.15 0.6695 -663.0 -585.3
10 0.00 0.72 0.00 0.47 16.52 55.89 40.39 287.43 0.6534 -653.0 -558.4
11 0.00 2.43 0.00 1.54 14.19 54.09 38.59 284.17 0.6259 214.0 197.9
12 0.00 1.98 0.00 1.26 14.56 54.08 38.58 284.76 0.6265 597.0 391.2
13 0.00 1.17 0.00 0.75 16.18 54.28 38.78 287.28 0.6322 -736.0 -540.4
14 0.00 1.17 0.00 0.73 14.57 53.01 37.51 285.01 0.6123 421.0 367.5
15 0.63 1.62 0.39 1.01 14.74 52.41 36.91 285.41 0.6047 796.0 657.1
16 0.00 0.45 0.00 0.28 13.91 51.98 36.48 284.13 0.5973 642.0 495.0
17 0.00 1.17 0.00 0.72 14.74 51.51 36.01 285.63 0.5926 479.0 454.8
18 0.00 1.35 0.00 0.83 16.28 51.20 35.70 288.28 0.5921 606.0 441.7
19 0.00 5.94 0.00 3.61 15.05 50.53 35.03 286.42 0.5800 935.0 761.3
20 0.00 0.72 0.00 0.44 16.64 50.85 35.35 289.00 0.5884 476.0 435.4
21 0.00 1.35 0.00 0.82 15.79 50.59 35.09 287.65 0.5827 636.0 491.8
22 0.00 3.15 0.00 1.92 16.44 50.61 35.11 288.74 0.5847 704.0 619.0
23 0.00 0.90 0.00 0.54 17.00 49.72 34.22 289.99 0.5745 643.0 526.5
24 0.00 0.99 0.00 0.61 19.88 50.04 34.54 294.67 0.5889 636.0 516.7
25 0.00 1.08 0.00 0.66 20.11 49.90 34.40 295.11 0.5881 633.0 559.5
26 0.00 0.99 0.00 0.58 12.62 47.75 32.25 282.80 0.5361 676.0 445.9
27 0.00 1.17 0.00 0.70 18.21 48.72 33.22 292.47 0.5653 768.0 593.0


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
