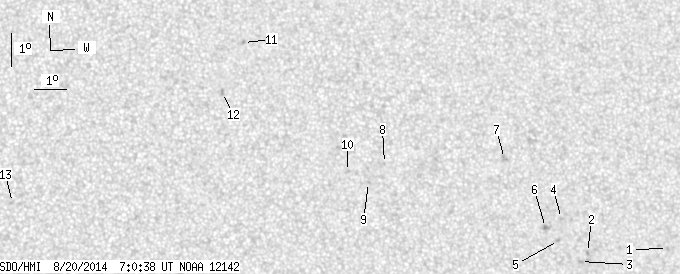

SDO HMI 2014-08-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.13 | 0.00 | 11.69 | 9.25 | 25.26 | 9.76 | 270.93 | 0.1910 | -207.8 | -288.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.79 | 7.39 | 32.28 | 16.78 | 272.84 | 0.2880 | -856.0 | -674.9 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 7.36 | 29.74 | 14.24 | 272.85 | 0.2454 | -964.0 | -716.6 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 7.09 | 29.51 | 14.01 | 271.76 | 0.2414 | -876.0 | -750.5 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.41 | 28.96 | 13.46 | 277.47 | 0.2332 | -805.0 | -666.1 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 7.75 | 28.84 | 13.34 | 274.63 | 0.2304 | -951.0 | -727.6 | |
| 0.00 | 3.15 | 0.00 | 1.60 | 8.15 | 28.44 | 12.94 | 276.54 | 0.2242 | -1044.0 | -866.5 | |
| 0.00 | 2.61 | 0.00 | 1.32 | 10.28 | 27.23 | 11.73 | 287.21 | 0.2104 | -967.0 | -811.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.21 | 23.47 | 7.97 | 293.51 | 0.1496 | 791.0 | 613.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 9.64 | 22.96 | 7.46 | 291.08 | 0.1379 | 800.0 | 593.5 | |
| 0.00 | 1.53 | 0.00 | 0.76 | 9.98 | 22.32 | 6.82 | 295.27 | 0.1299 | 980.0 | 795.3 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 13.95 | 19.16 | 3.66 | 333.36 | 0.1389 | 899.0 | 658.4 | |
| 0.00 | 1.89 | 0.00 | 0.94 | 12.43 | 18.48 | 2.98 | 332.37 | 0.1101 | 1034.0 | 843.9 | |
| 0.00 | 1.80 | 0.00 | 0.89 | 9.09 | 11.99 | -3.51 | 57.16 | 0.0722 | -742.0 | -443.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
