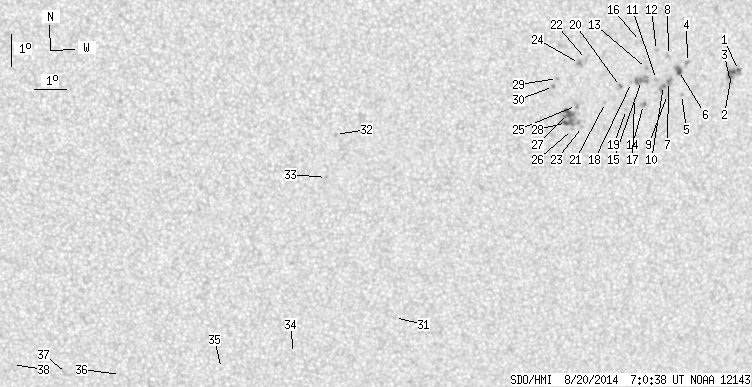

SDO HMI 2014-08-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.39 | 100.54 | 8.12 | 52.87 | -5.51 | 29.66 | 14.16 | 228.46 | 0.3351 | 190.3 | 132.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 11.16 | 0.38 | 5.96 | -4.32 | 34.44 | 18.94 | 239.91 | 0.3757 | 864.2 | 810.4 | |
| 3.33 | -1.00 | 1.78 | -1.00 | -4.40 | 34.22 | 18.72 | 239.41 | 0.3733 | 1169.1 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -4.68 | 34.20 | 18.70 | 238.74 | 0.3753 | 739.0 | 610.1 | |
| 2.16 | 2.79 | 1.14 | 1.48 | -4.01 | 32.80 | 17.30 | 238.29 | 0.3503 | 689.6 | 510.7 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -4.99 | 32.64 | 17.14 | 235.70 | 0.3568 | 723.0 | 591.6 | |
| 2.52 | 4.95 | 1.33 | 2.62 | -4.25 | 32.52 | 17.02 | 237.29 | 0.3485 | 1003.0 | 786.8 | |
| 0.54 | 8.01 | 0.29 | 4.23 | -4.57 | 32.21 | 16.71 | 236.00 | 0.3472 | 1013.2 | 833.8 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -3.77 | 32.19 | 16.69 | 237.94 | 0.3397 | 869.0 | 773.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -4.98 | 32.19 | 16.69 | 235.01 | 0.3507 | 691.0 | 608.7 | |
| 0.36 | -7.00 | 0.19 | -7.00 | -4.69 | 32.06 | 16.56 | 235.46 | 0.3462 | 1056.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -4.50 | 31.83 | 16.33 | 235.55 | 0.3414 | 967.0 | 780.3 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -3.60 | 31.81 | 16.31 | 237.74 | 0.3329 | 855.0 | 679.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -4.15 | 31.50 | 16.00 | 235.86 | 0.3337 | 945.0 | 836.3 | |
| 0.00 | 2.97 | 0.00 | 1.57 | -5.26 | 31.43 | 15.93 | 233.07 | 0.3435 | 841.0 | 687.5 | |
| 0.00 | 10.08 | 0.00 | 5.30 | -4.51 | 31.35 | 15.85 | 234.71 | 0.3351 | 943.0 | 850.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -3.31 | 31.30 | 15.80 | 237.66 | 0.3231 | 344.0 | 345.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -5.06 | 31.14 | 15.64 | 233.01 | 0.3377 | -589.0 | -422.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -4.56 | 31.04 | 15.54 | 234.02 | 0.3314 | 814.0 | 653.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -5.40 | 30.90 | 15.40 | 231.79 | 0.3379 | 796.0 | 577.7 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -4.68 | 30.69 | 15.19 | 233.12 | 0.3280 | 890.0 | 716.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -5.16 | 30.23 | 14.73 | 231.09 | 0.3269 | 732.0 | 555.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -3.81 | 29.61 | 14.11 | 233.25 | 0.3049 | -648.0 | -562.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -5.88 | 29.52 | 14.02 | 227.99 | 0.3258 | -620.0 | -483.1 | |
| 0.00 | 3.24 | 0.00 | 1.68 | -3.92 | 29.39 | 13.89 | 232.51 | 0.3032 | -1025.0 | -830.2 | |
| 0.00 | 2.61 | 0.00 | 1.36 | -5.22 | 29.32 | 13.82 | 229.11 | 0.3161 | -604.0 | -620.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -5.96 | 29.21 | 13.71 | 227.15 | 0.3230 | -698.0 | -513.3 | |
| 3.96 | 22.24 | 2.07 | 11.61 | -5.46 | 29.08 | 13.58 | 228.02 | 0.3157 | -1125.4 | -813.4 | |
| 1.80 | -27.00 | 0.94 | -27.00 | -5.74 | 29.02 | 13.52 | 227.25 | 0.3181 | -966.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -4.37 | 28.71 | 13.21 | 229.93 | 0.2991 | -957.0 | -731.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -4.61 | 28.59 | 13.09 | 229.05 | 0.3002 | -1088.0 | -880.3 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -11.76 | 23.80 | 8.30 | 203.96 | 0.3496 | -9.0 | -1.7 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -5.95 | 21.87 | 6.36 | 206.50 | 0.2482 | -765.0 | -688.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -7.29 | 21.60 | 6.10 | 203.38 | 0.2669 | -1036.0 | -698.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -12.86 | 20.67 | 5.17 | 194.61 | 0.3499 | -3.0 | -7.0 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -13.32 | 18.43 | 2.93 | 188.21 | 0.3501 | 15.0 | -1.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -13.50 | 15.28 | -0.22 | 179.39 | 0.3497 | 7.0 | 3.3 | |
| 0.00 | 4.05 | 0.00 | 2.14 | -13.47 | 13.60 | -1.90 | 174.69 | 0.3506 | -13.0 | -7.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -13.19 | 11.91 | -3.59 | 169.92 | 0.3496 | -10.0 | -8.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
