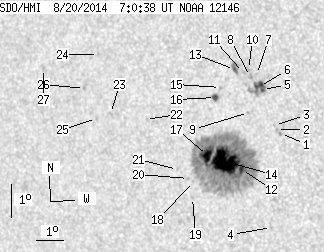

SDO HMI 2014-08-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.71 | 361.15 | 38.25 | 210.44 | 9.03 | 343.51 | -31.99 | 83.92 | 0.5283 | -606.2 | -348.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.72 | 9.72 | 345.51 | -29.99 | 82.43 | 0.4990 | 765.0 | 688.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 9.83 | 345.36 | -30.14 | 82.22 | 0.5014 | 644.0 | 522.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 9.95 | 345.28 | -30.22 | 81.99 | 0.5027 | 703.0 | 480.0 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 6.85 | 345.43 | -30.07 | 88.19 | 0.4997 | -647.0 | -467.8 | |
| 1.35 | 17.01 | 0.78 | 9.82 | 11.01 | 344.73 | -30.77 | 79.97 | 0.5120 | 1091.7 | 565.7 | |
| 5.40 | -5.00 | 3.12 | -5.00 | 11.10 | 344.61 | -30.89 | 79.82 | 0.5138 | 837.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 11.46 | 344.46 | -31.04 | 79.16 | 0.5166 | 238.0 | 183.8 | |
| 0.00 | 1.98 | 0.00 | 1.15 | 11.38 | 344.25 | -31.25 | 79.34 | 0.5195 | 575.0 | 389.6 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 10.29 | 344.31 | -31.19 | 81.45 | 0.5174 | -789.0 | -619.5 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 11.59 | 344.16 | -31.34 | 78.96 | 0.5212 | 508.0 | 382.9 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 11.49 | 343.99 | -31.51 | 79.19 | 0.5235 | -577.0 | -385.1 | |
| 3.60 | 310.39 | 2.08 | 180.67 | 8.55 | 344.23 | -31.27 | 84.83 | 0.5175 | -1230.9 | -418.2 | |
| 1.44 | 6.75 | 0.84 | 3.93 | 11.56 | 343.65 | -31.85 | 79.11 | 0.5285 | -953.5 | -739.7 | |
| 42.94 | -12.00 | 24.99 | -12.00 | 8.75 | 343.63 | -31.87 | 84.45 | 0.5263 | -1274.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 10.98 | 343.21 | -32.29 | 80.27 | 0.5342 | -829.0 | -700.2 | |
| 2.25 | 3.96 | 1.32 | 2.32 | 10.67 | 343.06 | -32.44 | 80.88 | 0.5359 | -963.1 | -671.7 | |
| 8.73 | -12.00 | 5.12 | -12.00 | 8.89 | 342.96 | -32.54 | 84.21 | 0.5362 | -950.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 8.08 | 342.53 | -32.97 | 85.74 | 0.5424 | -403.0 | -383.3 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 7.59 | 342.54 | -32.96 | 86.64 | 0.5424 | -470.0 | -379.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 8.15 | 342.34 | -33.16 | 85.59 | 0.5452 | -338.0 | -353.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 8.40 | 341.91 | -33.59 | 85.14 | 0.5514 | -437.0 | -359.5 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 9.84 | 340.56 | -34.94 | 82.63 | 0.5711 | 555.0 | 622.5 | |
| 0.00 | 1.53 | 0.00 | 0.94 | 9.93 | 339.22 | -36.28 | 82.55 | 0.5900 | 732.0 | 578.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 11.68 | 338.51 | -36.99 | 79.66 | 0.6011 | 449.0 | 487.6 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 9.74 | 338.71 | -36.79 | 82.89 | 0.5970 | 727.0 | 597.6 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 10.62 | 338.13 | -37.37 | 81.47 | 0.6055 | 599.0 | 504.8 | |
| 0.00 | 2.88 | 0.00 | 1.83 | 11.11 | 336.44 | -39.06 | 80.80 | 0.6287 | 570.0 | 322.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
