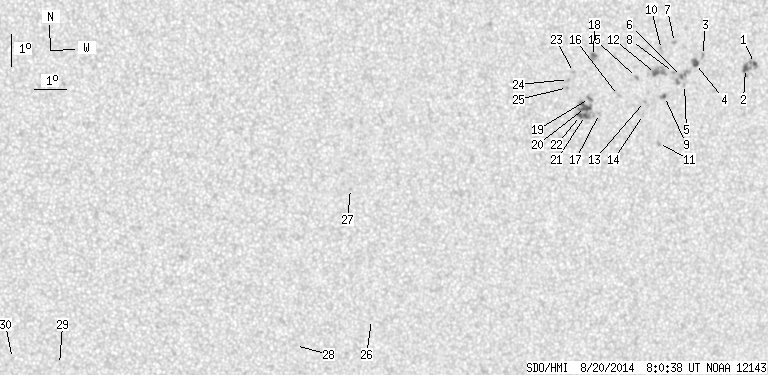

SDO HMI 2014-08-20 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.74 | 94.23 | 8.85 | 49.72 | -5.13 | 30.54 | 15.59 | 232.29 | 0.3430 | 137.2 | 234.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 13.50 | 0.63 | 7.24 | -4.35 | 34.48 | 19.52 | 240.63 | 0.3840 | 859.2 | 810.3 | |
| 2.16 | -1.00 | 1.16 | -1.00 | -4.49 | 34.19 | 19.24 | 239.92 | 0.3812 | 1111.9 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -4.03 | 32.80 | 17.85 | 239.05 | 0.3580 | 845.0 | 688.0 | |
| 2.43 | 4.68 | 1.29 | 2.48 | -4.27 | 32.58 | 17.63 | 238.16 | 0.3570 | 998.3 | 768.4 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -4.91 | 32.24 | 17.29 | 236.15 | 0.3581 | 792.0 | 595.1 | |
| 0.54 | 8.64 | 0.29 | 4.58 | -4.65 | 32.14 | 17.19 | 236.58 | 0.3545 | 1059.5 | 838.0 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -3.59 | 31.90 | 16.94 | 238.77 | 0.3417 | 902.0 | 744.1 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -4.52 | 31.88 | 16.93 | 236.48 | 0.3497 | 1022.0 | 817.1 | |
| 0.81 | 2.25 | 0.43 | 1.19 | -5.25 | 31.62 | 16.66 | 234.33 | 0.3530 | 870.9 | 667.1 | |
| 0.00 | 2.25 | 0.00 | 1.18 | -3.80 | 31.49 | 16.54 | 237.62 | 0.3377 | 891.0 | 788.4 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -6.71 | 31.47 | 16.52 | 230.85 | 0.3657 | 855.0 | 718.9 | |
| 1.71 | 11.25 | 0.90 | 5.93 | -4.53 | 31.31 | 16.36 | 235.53 | 0.3421 | 980.4 | 871.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -5.39 | 30.98 | 16.03 | 232.94 | 0.3460 | 834.0 | 676.8 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -5.79 | 30.96 | 16.01 | 231.99 | 0.3498 | 111.0 | 199.7 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -4.63 | 30.71 | 15.76 | 234.25 | 0.3350 | 1069.0 | 789.0 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -5.17 | 30.16 | 15.20 | 231.95 | 0.3331 | 839.0 | 546.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -5.71 | 29.57 | 14.62 | 229.57 | 0.3313 | -648.0 | -508.9 | |
| 0.00 | 4.95 | 0.00 | 2.58 | -3.94 | 29.34 | 14.39 | 233.46 | 0.3100 | -1135.0 | -903.0 | |
| 0.00 | 2.88 | 0.00 | 1.51 | -5.24 | 29.24 | 14.29 | 230.04 | 0.3221 | -907.0 | -666.2 | |
| 4.77 | 19.80 | 2.50 | 10.37 | -5.51 | 29.12 | 14.17 | 229.15 | 0.3236 | -1074.9 | -719.8 | |
| 1.44 | -20.00 | 0.75 | -20.00 | -5.76 | 29.13 | 14.18 | 228.58 | 0.3264 | -981.3 | 999999 | |
| 1.71 | -20.00 | 0.90 | -20.00 | -5.76 | 28.97 | 14.02 | 228.27 | 0.3244 | -970.9 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -4.41 | 28.72 | 13.77 | 231.00 | 0.3068 | -992.0 | -598.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -4.63 | 28.57 | 13.62 | 230.15 | 0.3071 | -928.0 | -809.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -4.87 | 28.55 | 13.59 | 229.48 | 0.3094 | -851.0 | -718.3 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -12.03 | 22.61 | 7.65 | 201.97 | 0.3497 | -2.0 | 1.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -7.87 | 21.86 | 6.91 | 205.19 | 0.2813 | -604.0 | -548.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -12.83 | 20.25 | 5.30 | 194.97 | 0.3499 | -26.0 | -18.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -13.41 | 12.89 | -2.06 | 174.24 | 0.3498 | -12.0 | -2.3 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -13.22 | 11.43 | -3.53 | 170.11 | 0.3500 | -3.0 | -1.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
