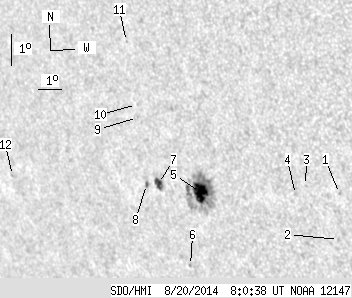

SDO HMI 2014-08-20 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.47 | 93.98 | 18.17 | 66.76 | -9.40 | 332.03 | -42.93 | 110.33 | 0.7185 | 737.5 | 354.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.82 | -9.04 | 337.86 | -37.09 | 112.79 | 0.6482 | 831.0 | 670.4 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -10.51 | 337.63 | -37.32 | 114.73 | 0.6586 | 687.0 | 587.8 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -8.88 | 336.56 | -38.39 | 111.84 | 0.6633 | 576.0 | 509.0 | |
| 0.00 | 1.35 | 0.00 | 0.90 | -9.20 | 336.12 | -38.83 | 112.05 | 0.6701 | 536.0 | 381.9 | |
| 19.35 | 74.90 | 13.70 | 53.02 | -9.45 | 332.22 | -42.74 | 110.45 | 0.7167 | 939.4 | 349.3 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -11.83 | 331.36 | -43.59 | 113.14 | 0.7361 | 351.0 | 410.1 | |
| 5.22 | 8.01 | 3.81 | 5.84 | -9.32 | 330.45 | -44.51 | 109.49 | 0.7361 | 725.9 | 450.5 | |
| 0.90 | 2.34 | 0.66 | 1.72 | -9.39 | 329.91 | -45.04 | 109.37 | 0.7423 | 632.8 | 467.4 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -7.30 | 329.83 | -45.12 | 106.62 | 0.7358 | 573.0 | 490.0 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -6.89 | 329.84 | -45.11 | 106.10 | 0.7343 | 480.0 | 411.3 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -4.96 | 329.62 | -45.34 | 103.46 | 0.7309 | 505.0 | 412.3 | |
| 0.00 | 1.17 | 0.00 | 0.98 | -9.68 | 323.64 | -51.31 | 107.36 | 0.8084 | -554.0 | -462.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
