SDO HMI 2014-08-20 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.49 | 115.56 | 7.70 | 61.39 | -4.83 | 30.69 | 17.39 | 236.12 | 0.3598 | 271.4 | 194.2 | |
|
previous
or next observation for the same group /

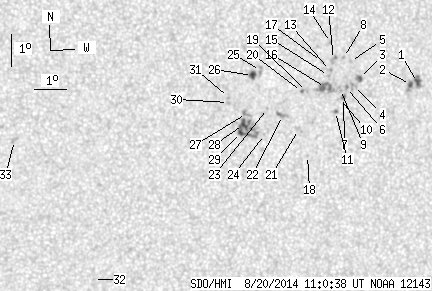

back to the solar disc SDO HMI 2014-08-20 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.43 | 6.93 | 1.32 | 3.76 | -4.46 | 34.55 | 21.25 | 242.49 | 0.4091 | 901.2 | 686.6 | |
| 1.17 | 5.13 | 0.63 | 2.78 | -4.51 | 34.33 | 21.02 | 242.12 | 0.4063 | 1140.0 | 780.0 | |
| 1.35 | 4.59 | 0.72 | 2.46 | -4.25 | 32.67 | 19.36 | 240.64 | 0.3809 | 948.1 | 740.4 | |
| 0.00 | 4.59 | 0.00 | 2.46 | -4.49 | 32.48 | 19.17 | 239.84 | 0.3803 | 731.0 | 633.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -3.71 | 32.36 | 19.06 | 241.49 | 0.3724 | 818.0 | 563.4 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -4.51 | 32.25 | 18.95 | 239.49 | 0.3773 | 996.0 | 826.3 | |
| 0.63 | 1.98 | 0.34 | 1.06 | -4.82 | 32.16 | 18.86 | 238.67 | 0.3787 | 834.7 | 700.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -3.58 | 32.13 | 18.83 | 241.50 | 0.3681 | 828.0 | 613.8 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -4.56 | 32.06 | 18.75 | 239.10 | 0.3751 | 905.0 | 782.7 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -4.84 | 32.04 | 18.73 | 238.44 | 0.3771 | 479.0 | 439.7 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -5.24 | 31.92 | 18.61 | 237.38 | 0.3790 | 857.0 | 685.8 | |
| 0.00 | 3.69 | 0.00 | 1.96 | -3.63 | 31.81 | 18.51 | 240.96 | 0.3639 | 886.0 | 794.8 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -3.96 | 31.73 | 18.42 | 240.04 | 0.3654 | 940.0 | 789.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -3.10 | 31.71 | 18.40 | 242.10 | 0.3582 | 805.0 | 626.9 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -4.12 | 31.66 | 18.36 | 239.59 | 0.3658 | 762.0 | 620.4 | |
| 0.00 | 13.41 | 0.00 | 7.14 | -4.48 | 31.58 | 18.27 | 238.61 | 0.3677 | 931.0 | 879.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -3.67 | 31.43 | 18.12 | 240.32 | 0.3589 | 773.0 | 622.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -6.57 | 31.06 | 17.76 | 233.19 | 0.3800 | 722.0 | 607.6 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -4.58 | 30.97 | 17.67 | 237.48 | 0.3603 | 592.0 | 596.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -4.58 | 30.81 | 17.51 | 237.26 | 0.3580 | 817.0 | 763.8 | |
| 0.00 | 3.78 | 0.00 | 2.01 | -5.75 | 30.75 | 17.44 | 234.47 | 0.3680 | 715.0 | 451.8 | |
| 0.00 | 4.95 | 0.00 | 2.62 | -5.30 | 30.22 | 16.92 | 234.65 | 0.3568 | 861.0 | 659.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -5.06 | 29.74 | 16.44 | 234.40 | 0.3481 | 733.0 | 478.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -5.87 | 29.67 | 16.36 | 232.43 | 0.3551 | -523.0 | -339.8 | |
| 0.00 | 4.05 | 0.00 | 2.13 | -3.88 | 29.49 | 16.19 | 236.85 | 0.3337 | -688.0 | -655.4 | |
| 2.88 | 4.68 | 1.51 | 2.46 | -4.03 | 29.24 | 15.94 | 236.06 | 0.3316 | -1046.8 | -850.8 | |
| 0.00 | 3.87 | 0.00 | 2.04 | -5.20 | 29.08 | 15.77 | 232.94 | 0.3407 | -659.0 | -690.8 | |
| 4.23 | 26.01 | 2.23 | 13.73 | -5.53 | 28.99 | 15.69 | 232.00 | 0.3430 | -1164.9 | -730.5 | |
| 1.80 | -28.00 | 0.95 | -28.00 | -5.78 | 28.90 | 15.60 | 231.28 | 0.3444 | -964.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -4.84 | 28.50 | 15.20 | 232.75 | 0.3295 | -798.0 | -680.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -4.68 | 28.50 | 15.19 | 233.12 | 0.3279 | -805.0 | -696.7 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -10.26 | 24.42 | 11.11 | 212.98 | 0.3498 | -30.0 | -17.7 | |
| 0.00 | 3.33 | 0.00 | 1.71 | -5.84 | 21.85 | 8.55 | 214.08 | 0.2650 | -844.0 | -715.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
