SDO HMI 2014-08-20 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.26 | 372.63 | 40.91 | 211.02 | 9.14 | 343.53 | -29.23 | 83.50 | 0.4873 | -632.2 | -329.4 | |
|
previous
or next observation for the same group /

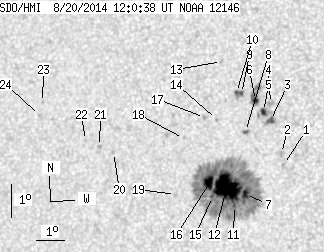

back to the solar disc SDO HMI 2014-08-20 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.70 | 9.62 | 345.49 | -27.27 | 82.29 | 0.4577 | 678.0 | 514.8 | |
| 0.00 | 2.43 | 0.00 | 1.35 | 9.95 | 345.39 | -27.37 | 81.58 | 0.4596 | 847.0 | 610.4 | |
| 2.61 | 6.03 | 1.46 | 3.38 | 10.93 | 344.91 | -27.84 | 79.56 | 0.4682 | 968.9 | 699.7 | |
| 0.00 | 3.87 | 0.00 | 2.17 | 11.44 | 344.86 | -27.90 | 78.48 | 0.4699 | 166.0 | 146.5 | |
| 2.79 | 8.91 | 1.57 | 5.00 | 11.19 | 344.64 | -28.12 | 79.07 | 0.4728 | 833.7 | 460.7 | |
| 2.34 | 14.22 | 1.32 | 8.01 | 11.51 | 344.33 | -28.43 | 78.48 | 0.4781 | 760.6 | -96.8 | |
| 5.04 | 314.49 | 2.84 | 178.05 | 8.64 | 344.25 | -28.51 | 84.51 | 0.4760 | -1246.6 | -400.7 | |
| 0.63 | 2.61 | 0.36 | 1.47 | 10.55 | 344.07 | -28.68 | 80.53 | 0.4803 | -848.0 | -710.4 | |
| 1.17 | 6.75 | 0.66 | 3.82 | 11.69 | 343.81 | -28.95 | 78.22 | 0.4861 | -954.9 | -760.3 | |
| 0.81 | -9.00 | 0.46 | -9.00 | 11.71 | 343.63 | -29.13 | 78.22 | 0.4888 | -861.4 | 999999 | |
| 0.27 | -7.00 | 0.15 | -7.00 | 8.28 | 343.89 | -28.87 | 85.27 | 0.4813 | -811.0 | 999999 | |
| 45.08 | -7.00 | 25.53 | -7.00 | 8.81 | 343.57 | -29.19 | 84.19 | 0.4864 | -1145.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 12.62 | 342.98 | -29.77 | 76.56 | 0.5002 | -642.0 | -500.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 10.85 | 343.01 | -29.74 | 80.10 | 0.4966 | -826.0 | -726.2 | |
| 1.80 | -7.00 | 1.02 | -7.00 | 8.51 | 343.10 | -29.66 | 84.83 | 0.4934 | -632.3 | 999999 | |
| 9.72 | -7.00 | 5.54 | -7.00 | 8.93 | 342.96 | -29.80 | 83.99 | 0.4957 | -837.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 10.89 | 342.58 | -30.17 | 80.10 | 0.5030 | -801.0 | -727.0 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 10.21 | 341.90 | -30.85 | 81.54 | 0.5123 | 494.0 | 387.5 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 8.50 | 341.78 | -30.97 | 84.90 | 0.5130 | -637.0 | -488.9 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 9.63 | 339.42 | -33.34 | 82.88 | 0.5482 | 681.0 | 587.2 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 9.78 | 338.88 | -33.88 | 82.65 | 0.5560 | 758.0 | 580.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 9.93 | 338.34 | -34.41 | 82.42 | 0.5638 | 505.0 | 425.6 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 10.97 | 336.58 | -36.18 | 80.77 | 0.5893 | 515.0 | 406.2 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 10.57 | 336.52 | -36.24 | 81.45 | 0.5898 | 607.0 | 481.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
