SDO HMI 2014-08-20 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.91 | 51.47 | 12.05 | 35.95 | 14.60 | 57.18 | 44.97 | 283.98 | 0.7064 | -366.4 | -295.9 | |
|
previous
or next observation for the same group /

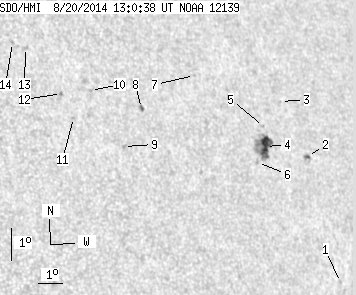

back to the solar disc SDO HMI 2014-08-20 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 1.07 | 9.88 | 60.84 | 48.64 | 277.14 | 0.7475 | -112.0 | -143.9 | |
| 0.99 | 3.24 | 0.73 | 2.38 | 13.81 | 60.23 | 48.03 | 282.45 | 0.7416 | -710.9 | -525.9 | |
| 0.00 | 0.81 | 0.00 | 0.59 | 15.58 | 59.48 | 47.28 | 284.92 | 0.7347 | -550.0 | -466.7 | |
| 15.29 | 31.85 | 10.90 | 22.66 | 14.28 | 58.42 | 46.21 | 283.25 | 0.7211 | -811.0 | -574.3 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 14.89 | 58.50 | 46.29 | 284.09 | 0.7226 | -551.0 | -460.5 | |
| 0.00 | 1.62 | 0.00 | 1.14 | 13.83 | 57.94 | 45.73 | 282.67 | 0.7150 | -745.0 | -609.6 | |
| 0.00 | 0.72 | 0.00 | 0.49 | 16.69 | 55.92 | 43.72 | 287.00 | 0.6945 | -521.0 | -449.4 | |
| 0.63 | 2.34 | 0.42 | 1.54 | 15.86 | 53.42 | 41.21 | 286.27 | 0.6625 | -785.6 | -654.0 | |
| 0.00 | 1.62 | 0.00 | 1.05 | 14.77 | 52.41 | 40.20 | 284.79 | 0.6478 | 767.0 | 555.0 | |
| 0.00 | 1.44 | 0.00 | 0.93 | 16.57 | 51.48 | 39.27 | 287.77 | 0.6394 | 582.0 | 481.8 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 15.80 | 50.60 | 38.40 | 286.78 | 0.6265 | 715.0 | 610.5 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 16.56 | 50.30 | 38.09 | 288.07 | 0.6242 | 850.0 | 729.1 | |
| 0.00 | 2.16 | 0.00 | 1.35 | 18.07 | 49.21 | 37.01 | 290.79 | 0.6143 | 609.0 | 480.5 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 18.26 | 48.74 | 36.54 | 291.26 | 0.6089 | 617.0 | 501.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
