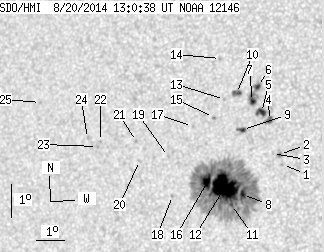

SDO HMI 2014-08-20 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.18 | 379.24 | 40.05 | 213.68 | 9.14 | 343.52 | -28.69 | 83.48 | 0.4791 | -585.4 | -333.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.55 | 9.62 | 345.53 | -26.68 | 82.20 | 0.4486 | 531.0 | 422.1 | |
| 0.00 | 2.79 | 0.00 | 1.55 | 9.92 | 345.40 | -26.81 | 81.56 | 0.4510 | 817.0 | 708.4 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 9.94 | 345.15 | -27.05 | 81.56 | 0.4547 | 665.0 | 539.9 | |
| 2.07 | 5.22 | 1.15 | 2.91 | 10.93 | 344.96 | -27.25 | 79.42 | 0.4592 | 980.9 | 732.3 | |
| 4.41 | 7.47 | 2.46 | 4.17 | 11.16 | 344.66 | -27.55 | 79.00 | 0.4642 | 689.9 | 443.3 | |
| 2.07 | 14.49 | 1.16 | 8.12 | 11.94 | 344.43 | -27.77 | 77.39 | 0.4690 | -742.6 | 186.6 | |
| 2.70 | -6.00 | 1.51 | -6.00 | 11.47 | 344.31 | -27.90 | 78.41 | 0.4700 | 637.4 | 999999 | |
| 2.88 | 324.61 | 1.61 | 182.83 | 8.64 | 344.22 | -27.98 | 84.49 | 0.4679 | -1254.7 | -400.8 | |
| 1.71 | 3.78 | 0.96 | 2.12 | 10.61 | 344.05 | -28.16 | 80.31 | 0.4725 | -820.6 | -641.5 | |
| 2.52 | 5.13 | 1.42 | 2.89 | 11.69 | 343.72 | -28.48 | 78.12 | 0.4792 | -941.1 | -727.0 | |
| 0.90 | -8.00 | 0.51 | -8.00 | 8.31 | 343.86 | -28.34 | 85.19 | 0.4733 | -874.6 | 999999 | |
| 42.83 | -8.00 | 24.12 | -8.00 | 8.82 | 343.58 | -28.63 | 84.15 | 0.4778 | -1154.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 11.48 | 343.32 | -28.88 | 78.64 | 0.4848 | -572.0 | -424.7 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 12.72 | 343.03 | -29.17 | 76.20 | 0.4916 | -605.0 | -458.6 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 10.91 | 342.99 | -29.21 | 79.87 | 0.4888 | -846.0 | -713.1 | |
| 9.09 | -8.00 | 5.15 | -8.00 | 8.96 | 342.97 | -29.24 | 83.88 | 0.4872 | -853.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 10.60 | 342.28 | -29.93 | 80.64 | 0.4990 | -681.0 | -516.0 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 8.47 | 341.77 | -30.43 | 84.95 | 0.5050 | -596.0 | -499.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 9.64 | 341.52 | -30.68 | 82.64 | 0.5093 | -841.0 | -664.1 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 9.46 | 340.50 | -31.71 | 83.09 | 0.5243 | 500.0 | 368.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 10.03 | 340.33 | -31.88 | 82.02 | 0.5272 | 732.0 | 666.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 9.94 | 339.02 | -33.19 | 82.29 | 0.5462 | 657.0 | 529.8 | |
| 0.00 | 1.62 | 0.00 | 0.96 | 9.79 | 338.93 | -33.28 | 82.59 | 0.5474 | 820.0 | 630.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 10.00 | 338.53 | -33.68 | 82.22 | 0.5532 | 557.0 | 504.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 10.98 | 336.64 | -35.56 | 80.68 | 0.5808 | 537.0 | 432.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
