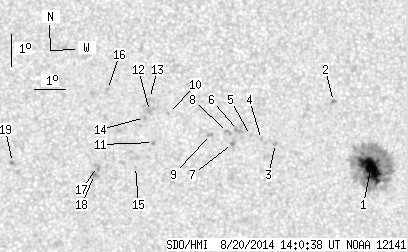

SDO HMI 2014-08-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.02 | 192.35 | 16.78 | 100.31 | 16.23 | 27.33 | 15.67 | 303.55 | 0.3117 | -562.3 | -266.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.02 | 151.94 | 16.78 | 79.62 | 15.98 | 28.63 | 16.97 | 300.22 | 0.3262 | -1263.8 | -386.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 18.08 | 27.60 | 15.94 | 307.30 | 0.3297 | -894.0 | -732.0 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 16.85 | 25.58 | 13.93 | 307.49 | 0.2916 | -925.0 | -768.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 16.98 | 25.14 | 13.48 | 308.74 | 0.2871 | -871.0 | -662.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 17.12 | 24.79 | 13.13 | 309.81 | 0.2839 | -825.0 | -652.8 | |
| 0.00 | 3.24 | 0.00 | 1.67 | 17.28 | 24.41 | 12.75 | 311.06 | 0.2808 | -820.0 | -793.1 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 16.89 | 24.19 | 12.53 | 310.41 | 0.2739 | -1056.0 | -787.1 | |
| 0.00 | 3.33 | 0.00 | 1.71 | 17.23 | 24.05 | 12.39 | 311.69 | 0.2757 | -515.0 | -708.7 | |
| 0.00 | 2.25 | 0.00 | 1.16 | 17.18 | 23.49 | 11.84 | 312.81 | 0.2683 | -840.0 | -663.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.86 | 22.17 | 10.52 | 317.96 | 0.2606 | 757.0 | 588.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 16.98 | 21.64 | 9.98 | 316.93 | 0.2439 | 921.0 | 836.0 | |
| 0.00 | 7.20 | 0.00 | 3.69 | 17.97 | 21.56 | 9.91 | 319.88 | 0.2552 | 870.0 | 694.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 18.34 | 21.59 | 9.93 | 320.79 | 0.2601 | 692.0 | 522.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.75 | 21.39 | 9.74 | 319.80 | 0.2506 | 852.0 | 708.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 16.25 | 21.02 | 9.37 | 316.50 | 0.2280 | 766.0 | 577.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 18.64 | 20.24 | 8.59 | 325.44 | 0.2505 | 801.0 | 560.9 | |
| 0.00 | 3.33 | 0.00 | 1.69 | 16.27 | 19.81 | 8.15 | 320.42 | 0.2146 | 744.0 | 730.0 | |
| 0.00 | 4.59 | 0.00 | 2.32 | 16.03 | 19.70 | 8.05 | 320.01 | 0.2103 | 1047.0 | 733.5 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 16.44 | 17.11 | 5.45 | 331.35 | 0.1910 | 947.0 | 762.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
