SDO HMI 2014-08-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.53 | 108.15 | 9.90 | 58.00 | -4.81 | 30.79 | 19.14 | 238.81 | 0.3835 | 49.0 | 210.9 | |
|
previous
or next observation for the same group /

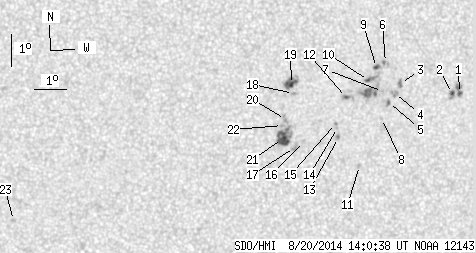

back to the solar disc SDO HMI 2014-08-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.26 | 6.75 | 0.69 | 3.71 | -4.60 | 34.68 | 23.02 | 244.11 | 0.4352 | 827.1 | 729.2 | |
| 1.35 | 4.23 | 0.74 | 2.32 | -4.59 | 34.45 | 22.79 | 243.89 | 0.4318 | 1010.9 | 813.2 | |
| 0.00 | 3.51 | 0.00 | 1.90 | -4.20 | 32.73 | 21.07 | 242.85 | 0.4047 | 943.0 | 762.5 | |
| 0.00 | 4.68 | 0.00 | 2.53 | -4.50 | 32.54 | 20.89 | 241.98 | 0.4043 | 817.0 | 708.6 | |
| 0.54 | 1.62 | 0.29 | 0.88 | -4.77 | 32.35 | 20.70 | 241.16 | 0.4038 | 821.7 | 695.9 | |
| 0.00 | 2.52 | 0.00 | 1.36 | -3.53 | 32.22 | 20.57 | 243.77 | 0.3926 | 831.0 | 706.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -4.42 | 32.15 | 20.49 | 241.68 | 0.3982 | 847.0 | 735.5 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -5.25 | 32.14 | 20.49 | 239.86 | 0.4047 | 920.0 | 644.2 | |
| 1.44 | 3.87 | 0.77 | 2.08 | -3.67 | 31.93 | 20.28 | 243.11 | 0.3895 | 1009.9 | 815.7 | |
| 0.99 | 21.86 | 0.53 | 11.76 | -4.06 | 31.68 | 20.03 | 241.92 | 0.3889 | 1006.3 | 862.0 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -6.69 | 31.48 | 19.83 | 235.99 | 0.4081 | 667.0 | 496.0 | |
| 0.81 | 5.04 | 0.43 | 2.70 | -4.55 | 30.99 | 19.33 | 239.91 | 0.3831 | 926.9 | 674.0 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -5.79 | 30.77 | 19.11 | 236.89 | 0.3905 | 875.0 | 857.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -5.47 | 30.72 | 19.07 | 237.51 | 0.3872 | 676.0 | 609.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -5.35 | 30.66 | 19.00 | 237.69 | 0.3852 | 792.0 | 679.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -5.86 | 29.64 | 17.99 | 235.08 | 0.3763 | -700.0 | -429.9 | |
| 0.00 | 3.51 | 0.00 | 1.87 | -6.04 | 29.36 | 17.71 | 234.26 | 0.3742 | -555.0 | -579.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -4.36 | 29.28 | 17.63 | 237.94 | 0.3578 | -636.0 | -465.9 | |
| 1.71 | 11.51 | 0.90 | 6.10 | -4.08 | 29.21 | 17.56 | 238.51 | 0.3544 | -1043.6 | -909.8 | |
| 0.00 | 3.78 | 0.00 | 2.01 | -5.16 | 29.05 | 17.39 | 235.73 | 0.3618 | -820.0 | -667.5 | |
| 10.43 | 21.59 | 5.55 | 11.49 | -5.75 | 28.97 | 17.31 | 234.28 | 0.3663 | -1036.9 | -660.1 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -5.34 | 28.95 | 17.30 | 235.17 | 0.3623 | -876.0 | -720.6 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -8.06 | 20.58 | 8.93 | 210.96 | 0.3000 | -785.0 | -612.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
