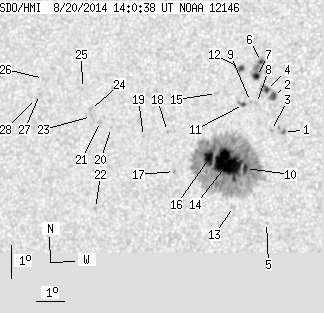

SDO HMI 2014-08-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.02 | 392.67 | 43.13 | 220.24 | 9.11 | 343.50 | -28.15 | 83.46 | 0.4709 | -541.8 | -296.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 4.41 | 0.30 | 2.43 | 9.86 | 345.44 | -26.21 | 81.59 | 0.4417 | 806.7 | 657.1 | |
| 2.88 | 12.05 | 1.60 | 6.69 | 10.93 | 345.00 | -26.65 | 79.28 | 0.4501 | 967.4 | 593.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 9.90 | 345.03 | -26.63 | 81.58 | 0.4482 | 653.0 | 491.4 | |
| 2.25 | -2.00 | 1.25 | -2.00 | 11.13 | 344.74 | -26.91 | 78.91 | 0.4545 | 813.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 7.10 | 345.06 | -26.59 | 87.85 | 0.4464 | -609.0 | -489.9 | |
| 1.62 | 17.72 | 0.90 | 9.88 | 11.97 | 344.48 | -27.18 | 77.15 | 0.4601 | -792.1 | 71.0 | |
| 3.42 | -6.00 | 1.91 | -6.00 | 11.51 | 344.35 | -27.30 | 78.19 | 0.4610 | 722.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 10.69 | 344.43 | -27.22 | 79.95 | 0.4583 | -418.0 | -341.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 10.74 | 344.22 | -27.43 | 79.89 | 0.4617 | -770.0 | -619.2 | |
| 4.14 | 329.06 | 2.31 | 184.44 | 8.70 | 344.23 | -27.43 | 84.32 | 0.4594 | -1186.2 | -375.1 | |
| 1.08 | 3.33 | 0.60 | 1.86 | 10.63 | 343.99 | -27.67 | 80.16 | 0.4651 | -877.5 | -754.9 | |
| 2.16 | 4.23 | 1.21 | 2.37 | 11.72 | 343.77 | -27.88 | 77.89 | 0.4702 | -932.2 | -632.6 | |
| 0.00 | 2.79 | 0.00 | 1.56 | 7.52 | 343.90 | -27.76 | 86.88 | 0.4643 | -48.0 | -78.5 | |
| 49.12 | -10.00 | 27.52 | -10.00 | 8.81 | 343.59 | -28.06 | 84.11 | 0.4692 | -1136.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 10.91 | 343.01 | -28.64 | 79.76 | 0.4802 | -823.0 | -625.1 | |
| 9.81 | -10.00 | 5.53 | -10.00 | 8.96 | 342.95 | -28.70 | 83.85 | 0.4791 | -852.4 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 8.47 | 341.76 | -29.89 | 84.93 | 0.4969 | -563.0 | -466.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 9.67 | 341.40 | -30.25 | 82.55 | 0.5029 | -783.0 | -557.5 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 9.46 | 340.56 | -31.09 | 83.03 | 0.5152 | 544.0 | 438.3 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 9.67 | 339.38 | -32.27 | 82.74 | 0.5327 | 721.0 | 568.0 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 9.82 | 338.96 | -32.69 | 82.48 | 0.5389 | 773.0 | 684.3 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 7.18 | 339.03 | -32.62 | 87.41 | 0.5375 | 415.0 | 426.7 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 9.95 | 338.62 | -33.03 | 82.27 | 0.5440 | 612.0 | 556.8 | |
| 0.00 | 2.07 | 0.00 | 1.22 | 10.16 | 338.56 | -33.10 | 81.89 | 0.5450 | 514.0 | 488.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 10.78 | 338.19 | -33.47 | 80.80 | 0.5509 | 568.0 | 487.7 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 10.99 | 336.70 | -34.95 | 80.60 | 0.5722 | 578.0 | 406.3 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 10.49 | 336.62 | -35.04 | 81.48 | 0.5730 | 567.0 | 426.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 10.37 | 336.52 | -35.14 | 81.71 | 0.5743 | 510.0 | 419.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
