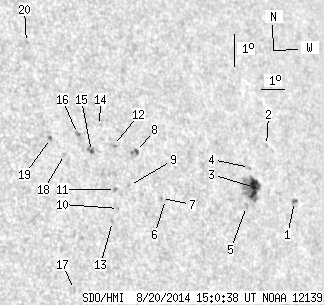

SDO HMI 2014-08-20 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.94 | 67.57 | 10.04 | 47.16 | 14.82 | 56.05 | 44.95 | 284.26 | 0.7060 | -168.6 | -233.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.34 | 0.00 | 1.76 | 13.78 | 60.20 | 49.10 | 282.33 | 0.7537 | -840.0 | -659.5 | |
| 0.00 | 1.26 | 0.00 | 0.93 | 15.58 | 59.41 | 48.31 | 284.81 | 0.7463 | -500.0 | -417.1 | |
| 12.32 | 32.11 | 8.96 | 23.29 | 14.36 | 58.48 | 47.38 | 283.25 | 0.7347 | -805.4 | -562.5 | |
| 0.00 | 1.44 | 0.00 | 1.05 | 14.99 | 58.43 | 47.33 | 284.11 | 0.7346 | -620.0 | -481.9 | |
| 0.00 | 2.07 | 0.00 | 1.49 | 13.82 | 57.96 | 46.86 | 282.56 | 0.7282 | -555.0 | -565.4 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 14.33 | 54.49 | 43.39 | 283.64 | 0.6872 | 402.0 | 406.5 | |
| 0.00 | 1.44 | 0.00 | 0.98 | 14.37 | 54.33 | 43.22 | 283.73 | 0.6852 | 655.0 | 508.7 | |
| 0.99 | 4.95 | 0.67 | 3.32 | 15.88 | 53.63 | 42.53 | 286.04 | 0.6788 | -781.8 | -728.0 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 14.87 | 53.08 | 41.98 | 284.65 | 0.6704 | 410.0 | 301.2 | |
| 0.00 | 0.72 | 0.00 | 0.47 | 14.21 | 52.46 | 41.36 | 283.75 | 0.6618 | 542.0 | 426.1 | |
| 0.00 | 1.62 | 0.00 | 1.07 | 14.80 | 52.47 | 41.37 | 284.63 | 0.6627 | 701.0 | 508.6 | |
| 0.00 | 2.52 | 0.00 | 1.67 | 16.14 | 52.72 | 41.62 | 286.60 | 0.6680 | -460.0 | -419.9 | |
| 0.00 | 1.71 | 0.00 | 1.12 | 13.84 | 52.13 | 41.03 | 283.23 | 0.6570 | 661.0 | 524.9 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 16.79 | 52.30 | 41.20 | 287.66 | 0.6640 | -168.0 | -199.0 | |
| 0.63 | 3.78 | 0.41 | 2.47 | 16.03 | 51.77 | 40.66 | 286.62 | 0.6559 | 381.7 | 215.0 | |
| 0.00 | 2.43 | 0.00 | 1.58 | 16.62 | 51.33 | 40.23 | 287.62 | 0.6516 | 661.0 | 424.8 | |
| 0.00 | 2.25 | 0.00 | 1.43 | 11.90 | 50.20 | 39.10 | 280.46 | 0.6298 | 253.0 | 171.4 | |
| 0.00 | 1.44 | 0.00 | 0.93 | 16.02 | 50.65 | 39.54 | 286.86 | 0.6417 | -15.0 | 98.9 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 16.55 | 50.20 | 39.10 | 287.78 | 0.6371 | 844.0 | 684.9 | |
| 0.00 | 1.62 | 0.00 | 1.04 | 19.56 | 50.02 | 38.91 | 292.47 | 0.6428 | 503.0 | 507.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
