SDO HMI 2014-08-20 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.60 | 118.48 | 11.59 | 63.79 | -4.79 | 30.95 | 19.85 | 239.90 | 0.3927 | 108.9 | 282.8 | |
|
previous
or next observation for the same group /

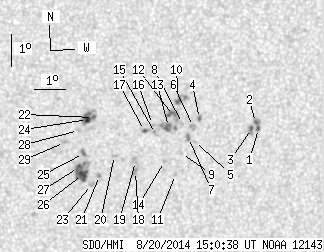

back to the solar disc SDO HMI 2014-08-20 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.26 | 6.03 | 0.70 | 3.33 | -4.63 | 34.72 | 23.62 | 244.65 | 0.4438 | 822.1 | 711.1 | |
| 0.99 | -1.00 | 0.55 | -1.00 | -4.44 | 34.62 | 23.51 | 244.93 | 0.4410 | 958.8 | 999999 | |
| 1.17 | 4.32 | 0.64 | 2.38 | -4.61 | 34.49 | 23.39 | 244.44 | 0.4404 | 1081.1 | 747.1 | |
| 0.63 | 2.61 | 0.34 | 1.42 | -4.22 | 32.76 | 21.66 | 243.46 | 0.4132 | 862.1 | 728.0 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -4.93 | 32.62 | 21.52 | 241.79 | 0.4165 | 653.0 | 501.0 | |
| 0.00 | 4.14 | 0.00 | 2.25 | -4.46 | 32.57 | 21.47 | 242.73 | 0.4123 | 895.0 | 748.3 | |
| 0.63 | 3.06 | 0.34 | 1.66 | -4.79 | 32.42 | 21.32 | 241.84 | 0.4127 | 897.3 | 724.0 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -4.35 | 32.21 | 21.11 | 242.55 | 0.4064 | 768.0 | 697.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -5.28 | 32.21 | 21.11 | 240.56 | 0.4135 | 773.0 | 516.2 | |
| 1.35 | 8.90 | 0.73 | 4.81 | -3.67 | 32.06 | 20.96 | 243.90 | 0.3992 | 1103.6 | 798.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -5.92 | 32.04 | 20.93 | 239.00 | 0.4163 | 667.0 | 587.5 | |
| 0.00 | 8.18 | 0.00 | 4.42 | -4.09 | 31.91 | 20.81 | 242.78 | 0.4002 | 892.0 | 913.0 | |
| 0.00 | 11.87 | 0.00 | 6.41 | -4.42 | 31.76 | 20.66 | 241.86 | 0.4005 | 1094.0 | 919.6 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -5.50 | 31.66 | 20.56 | 239.41 | 0.4078 | 843.0 | 668.5 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -4.62 | 31.34 | 20.24 | 240.92 | 0.3962 | 720.0 | 683.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -4.34 | 31.24 | 20.13 | 241.41 | 0.3925 | 395.0 | 579.5 | |
| 0.90 | 2.88 | 0.48 | 1.55 | -4.51 | 30.98 | 19.88 | 240.70 | 0.3904 | 906.5 | 711.8 | |
| 0.00 | 3.51 | 0.00 | 1.89 | -5.77 | 30.73 | 19.63 | 237.62 | 0.3974 | 970.0 | 785.4 | |
| 0.00 | 3.96 | 0.00 | 2.13 | -5.46 | 30.72 | 19.62 | 238.28 | 0.3946 | 439.0 | 597.8 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -5.25 | 30.03 | 18.93 | 237.81 | 0.3834 | 627.0 | 533.1 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -5.85 | 29.57 | 18.47 | 235.82 | 0.3825 | -605.0 | -486.6 | |
| 0.63 | 12.95 | 0.33 | 6.88 | -4.04 | 29.33 | 18.23 | 239.57 | 0.3634 | -738.1 | -855.2 | |
| 0.00 | 2.97 | 0.00 | 1.59 | -6.12 | 29.32 | 18.22 | 234.87 | 0.3818 | -674.0 | -568.1 | |
| 3.15 | -22.00 | 1.67 | -22.00 | -4.10 | 29.14 | 18.04 | 239.17 | 0.3612 | -1047.5 | 999999 | |
| 0.63 | 3.60 | 0.34 | 1.92 | -5.15 | 29.04 | 17.93 | 236.59 | 0.3690 | -832.4 | -570.5 | |
| 7.65 | 21.41 | 4.08 | 11.43 | -5.80 | 29.02 | 17.92 | 235.12 | 0.3748 | -975.9 | -673.4 | |
| 2.61 | -26.00 | 1.39 | -26.00 | -5.58 | 28.89 | 17.79 | 235.40 | 0.3709 | -1144.2 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -4.43 | 28.86 | 17.76 | 237.98 | 0.3601 | -775.0 | -706.5 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -4.78 | 28.42 | 17.32 | 236.48 | 0.3573 | -905.0 | -729.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
