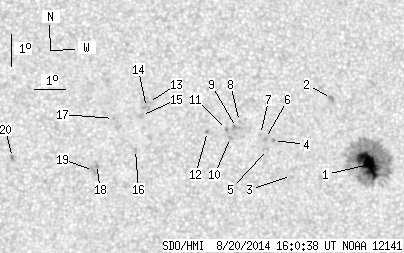

SDO HMI 2014-08-20 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.96 | 204.44 | 15.26 | 107.35 | 16.16 | 27.68 | 17.13 | 301.02 | 0.3308 | -648.4 | -312.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.96 | 169.61 | 15.26 | 89.41 | 15.97 | 28.65 | 18.10 | 298.76 | 0.3421 | -1313.3 | -380.6 | |
| 0.00 | 3.15 | 0.00 | 1.66 | 18.05 | 27.62 | 17.07 | 305.47 | 0.3442 | -780.0 | -783.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 15.72 | 26.09 | 15.54 | 301.52 | 0.3038 | -374.0 | -409.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 16.82 | 25.59 | 15.04 | 305.43 | 0.3061 | -1086.0 | -944.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 16.54 | 25.37 | 14.82 | 305.04 | 0.3008 | -745.0 | -637.0 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 16.88 | 25.33 | 14.78 | 306.06 | 0.3033 | -952.0 | -796.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 17.01 | 25.18 | 14.63 | 306.68 | 0.3024 | -838.0 | -646.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 17.43 | 24.52 | 13.97 | 309.03 | 0.2979 | -633.0 | -507.9 | |
| 0.00 | 4.41 | 0.00 | 2.28 | 17.25 | 24.41 | 13.86 | 308.74 | 0.2946 | -913.0 | -767.8 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 16.95 | 24.19 | 13.64 | 308.32 | 0.2888 | -948.0 | -762.5 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 17.20 | 24.08 | 13.53 | 309.24 | 0.2898 | -965.0 | -763.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.15 | 23.46 | 12.91 | 310.37 | 0.2814 | -956.0 | -815.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.10 | 21.60 | 11.05 | 317.21 | 0.2694 | 885.0 | 746.7 | |
| 0.00 | 3.33 | 0.00 | 1.71 | 17.94 | 21.53 | 10.98 | 316.99 | 0.2668 | 776.0 | 744.4 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 17.70 | 21.35 | 10.80 | 316.78 | 0.2618 | 821.0 | 727.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 16.66 | 21.09 | 10.54 | 314.45 | 0.2467 | 933.0 | 791.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 17.63 | 20.44 | 9.89 | 319.01 | 0.2507 | 839.0 | 649.5 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 16.22 | 19.82 | 9.27 | 316.69 | 0.2265 | 857.0 | 749.5 | |
| 0.00 | 3.42 | 0.00 | 1.74 | 16.04 | 19.71 | 9.16 | 316.43 | 0.2231 | 996.0 | 790.4 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 16.48 | 17.15 | 6.60 | 326.71 | 0.2017 | 911.0 | 753.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
