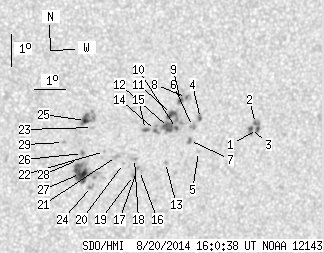

SDO HMI 2014-08-20 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.29 | 122.87 | 17.96 | 66.34 | -4.84 | 30.81 | 20.26 | 240.30 | 0.3988 | 227.4 | 183.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 6.65 | 0.65 | 3.69 | -4.65 | 34.74 | 24.19 | 245.13 | 0.4519 | 798.4 | 680.5 | |
| 0.63 | -1.00 | 0.35 | -1.00 | -4.46 | 34.66 | 24.11 | 245.45 | 0.4497 | 1040.4 | 999999 | |
| 1.17 | 3.51 | 0.65 | 1.94 | -4.61 | 34.50 | 23.95 | 245.00 | 0.4483 | 1089.0 | 819.2 | |
| 0.36 | 1.80 | 0.20 | 0.98 | -4.22 | 32.83 | 22.28 | 244.13 | 0.4221 | 855.5 | 779.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -5.24 | 32.80 | 22.25 | 241.96 | 0.4290 | 731.0 | 563.7 | |
| 0.00 | 3.33 | 0.00 | 1.82 | -4.45 | 32.58 | 22.03 | 243.35 | 0.4201 | 953.0 | 764.8 | |
| 0.54 | 2.52 | 0.29 | 1.37 | -4.88 | 32.49 | 21.94 | 242.35 | 0.4221 | 925.2 | 723.5 | |
| 0.36 | 8.27 | 0.20 | 4.49 | -3.55 | 32.36 | 21.81 | 245.08 | 0.4106 | 875.8 | 734.0 | |
| 1.35 | -8.00 | 0.73 | -8.00 | -3.63 | 32.16 | 21.61 | 244.69 | 0.4083 | 1119.1 | 999999 | |
| 0.81 | 23.56 | 0.44 | 12.78 | -4.49 | 32.05 | 21.51 | 242.70 | 0.4130 | 962.4 | 822.8 | |
| 3.33 | -10.00 | 1.80 | -10.00 | -4.05 | 31.88 | 21.33 | 243.45 | 0.4073 | 1126.6 | 999999 | |
| 5.85 | -10.00 | 3.17 | -10.00 | -4.45 | 31.79 | 21.24 | 242.49 | 0.4090 | 1032.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -5.53 | 31.73 | 21.18 | 240.12 | 0.4165 | 834.0 | 695.5 | |
| 0.45 | 3.78 | 0.24 | 2.04 | -4.52 | 31.37 | 20.82 | 241.84 | 0.4036 | 934.0 | 731.5 | |
| 0.72 | 2.07 | 0.39 | 1.12 | -4.48 | 31.04 | 20.49 | 241.54 | 0.3987 | 1013.0 | 791.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -5.74 | 30.89 | 20.34 | 238.63 | 0.4068 | 426.0 | 494.2 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -5.68 | 30.82 | 20.27 | 238.68 | 0.4053 | 993.0 | 841.6 | |
| 0.00 | 2.52 | 0.00 | 1.36 | -5.36 | 30.71 | 20.16 | 239.21 | 0.4012 | 552.0 | 449.3 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -5.89 | 30.70 | 20.15 | 238.07 | 0.4054 | 884.0 | 690.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -5.50 | 30.36 | 19.81 | 238.45 | 0.3976 | 752.0 | 538.6 | |
| 0.00 | 3.51 | 0.00 | 1.89 | -5.27 | 30.13 | 19.58 | 238.63 | 0.3925 | 609.0 | 379.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -5.10 | 29.73 | 19.18 | 238.47 | 0.3856 | -630.0 | -460.0 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -4.34 | 29.33 | 18.78 | 239.63 | 0.3736 | -436.0 | -358.4 | |
| 0.00 | 3.06 | 0.00 | 1.64 | -6.17 | 29.35 | 18.80 | 235.61 | 0.3899 | -558.0 | -554.5 | |
| 2.43 | 14.48 | 1.29 | 7.71 | -4.12 | 29.10 | 18.55 | 239.84 | 0.3685 | -1095.3 | -772.0 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -5.14 | 29.03 | 18.48 | 237.41 | 0.3763 | -900.0 | -745.5 | |
| 14.12 | 30.04 | 7.56 | 16.09 | -5.75 | 28.98 | 18.43 | 235.97 | 0.3812 | -1042.7 | -414.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -5.32 | 28.90 | 18.35 | 236.82 | 0.3762 | -875.0 | -581.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -4.77 | 28.41 | 17.86 | 237.33 | 0.3646 | -924.0 | -739.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
