SDO HMI 2014-08-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.46 | 63.42 | 11.88 | 45.04 | 15.18 | 55.91 | 45.91 | 284.66 | 0.7178 | -243.8 | -260.5 | |
|
previous
or next observation for the same group /

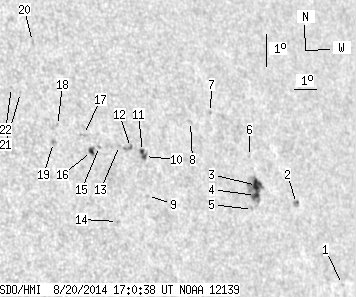

back to the solar disc SDO HMI 2014-08-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.78 | 11.13 | 61.75 | 51.76 | 278.78 | 0.7820 | -336.0 | -308.8 | |
| 0.00 | 3.51 | 0.00 | 2.69 | 13.77 | 60.20 | 50.20 | 282.25 | 0.7659 | -871.0 | -594.6 | |
| 8.00 | 27.16 | 5.95 | 20.12 | 14.49 | 58.48 | 48.48 | 283.31 | 0.7473 | -774.3 | -588.9 | |
| 3.24 | -3.00 | 2.40 | -3.00 | 14.19 | 58.34 | 48.35 | 282.93 | 0.7455 | -852.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 13.78 | 58.09 | 48.09 | 282.39 | 0.7423 | -527.0 | -466.9 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 15.39 | 58.42 | 48.43 | 284.53 | 0.7474 | -560.0 | -465.6 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 16.88 | 57.06 | 47.06 | 286.70 | 0.7337 | -542.0 | -482.2 | |
| 0.00 | 1.62 | 0.00 | 1.15 | 16.68 | 56.07 | 46.08 | 286.58 | 0.7222 | -504.0 | -453.4 | |
| 0.00 | 1.35 | 0.00 | 0.92 | 14.59 | 53.57 | 43.57 | 284.00 | 0.6897 | 457.0 | 353.6 | |
| 1.44 | 6.29 | 0.99 | 4.31 | 15.79 | 53.75 | 43.75 | 285.69 | 0.6935 | -839.2 | -607.7 | |
| 1.53 | -10.00 | 1.05 | -10.00 | 15.95 | 53.70 | 43.71 | 285.93 | 0.6932 | -746.8 | 999999 | |
| 0.36 | 4.23 | 0.24 | 2.87 | 16.11 | 53.22 | 43.23 | 286.24 | 0.6877 | -744.5 | -536.7 | |
| 0.00 | 0.72 | 0.00 | 0.49 | 16.21 | 52.78 | 42.78 | 286.47 | 0.6824 | -506.0 | -409.9 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 13.91 | 52.12 | 42.12 | 283.18 | 0.6710 | 579.0 | 534.2 | |
| 0.00 | 1.44 | 0.00 | 0.96 | 16.24 | 51.93 | 41.93 | 286.68 | 0.6720 | 396.0 | 222.1 | |
| 1.89 | 4.59 | 1.25 | 3.04 | 16.12 | 51.55 | 41.56 | 286.57 | 0.6672 | 665.0 | 459.5 | |
| 0.00 | 2.07 | 0.00 | 1.37 | 16.66 | 51.36 | 41.36 | 287.42 | 0.6658 | 575.0 | 470.3 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 17.02 | 50.36 | 40.36 | 288.18 | 0.6541 | 469.0 | 428.8 | |
| 0.00 | 2.25 | 0.00 | 1.46 | 16.51 | 50.06 | 40.07 | 287.48 | 0.6493 | 933.0 | 620.2 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 19.67 | 50.06 | 40.06 | 292.24 | 0.6571 | 491.0 | 453.6 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 18.14 | 49.12 | 39.13 | 290.22 | 0.6413 | 606.0 | 499.7 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 18.32 | 48.80 | 38.80 | 290.59 | 0.6378 | 659.0 | 557.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
