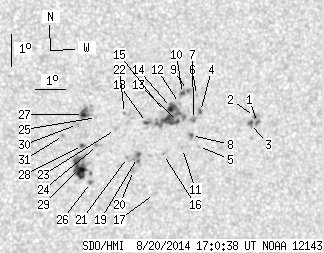

SDO HMI 2014-08-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.43 | 129.69 | 15.37 | 70.32 | -4.78 | 30.94 | 20.95 | 241.28 | 0.4079 | 123.6 | 312.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 5.84 | 0.25 | 3.26 | -4.65 | 34.78 | 24.78 | 245.69 | 0.4603 | 856.8 | 664.8 | |
| 0.36 | -1.00 | 0.20 | -1.00 | -4.46 | 34.67 | 24.68 | 245.97 | 0.4576 | 920.8 | 999999 | |
| 1.08 | 2.88 | 0.60 | 1.60 | -4.67 | 34.55 | 24.55 | 245.44 | 0.4572 | 1034.5 | 810.8 | |
| 0.45 | 1.71 | 0.25 | 0.94 | -4.21 | 32.87 | 22.87 | 244.75 | 0.4304 | 813.6 | 746.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -5.29 | 32.84 | 22.84 | 242.48 | 0.4377 | 706.0 | 556.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -3.71 | 32.72 | 22.73 | 245.66 | 0.4249 | 630.0 | 547.0 | |
| 0.00 | 3.33 | 0.00 | 1.82 | -4.45 | 32.64 | 22.65 | 244.02 | 0.4289 | 824.0 | 766.6 | |
| 0.63 | 2.70 | 0.35 | 1.48 | -4.94 | 32.59 | 22.60 | 242.94 | 0.4317 | 874.3 | 700.5 | |
| 0.36 | 4.68 | 0.20 | 2.55 | -3.54 | 32.42 | 22.43 | 245.72 | 0.4194 | 879.8 | 848.2 | |
| 1.08 | -9.00 | 0.59 | -9.00 | -3.63 | 32.26 | 22.26 | 245.38 | 0.4177 | 1168.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -5.33 | 32.31 | 22.32 | 241.84 | 0.4306 | 778.0 | 573.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -3.93 | 32.17 | 22.17 | 244.62 | 0.4185 | 815.0 | 653.0 | |
| 0.99 | 33.63 | 0.54 | 18.32 | -4.48 | 32.12 | 22.12 | 243.39 | 0.4217 | 908.4 | 896.8 | |
| 4.77 | -13.00 | 2.59 | -13.00 | -4.04 | 31.91 | 21.91 | 244.11 | 0.4156 | 1140.0 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.32 | -4.16 | 31.68 | 21.69 | 243.62 | 0.4131 | 435.0 | 443.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -5.49 | 31.69 | 21.70 | 240.81 | 0.4233 | 788.0 | 536.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -6.69 | 31.45 | 21.45 | 238.09 | 0.4297 | 572.0 | 457.1 | |
| 0.81 | 4.95 | 0.44 | 2.68 | -4.47 | 31.10 | 21.11 | 242.28 | 0.4073 | 1012.4 | 688.0 | |
| 0.00 | 8.00 | 0.00 | 4.35 | -5.54 | 30.84 | 20.85 | 239.68 | 0.4121 | 831.0 | 718.0 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -5.94 | 30.73 | 20.73 | 238.71 | 0.4138 | 679.0 | 638.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -5.53 | 30.52 | 20.52 | 239.31 | 0.4075 | 757.0 | 560.9 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -4.16 | 30.38 | 20.38 | 242.11 | 0.3947 | -802.0 | -526.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -4.64 | 30.10 | 20.10 | 240.69 | 0.3946 | 836.0 | 604.2 | |
| 0.00 | 2.43 | 0.00 | 1.31 | -5.11 | 29.53 | 19.54 | 238.92 | 0.3905 | -782.0 | -480.0 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -4.24 | 29.47 | 19.48 | 240.79 | 0.3826 | -509.0 | -375.3 | |
| 0.00 | 2.25 | 0.00 | 1.21 | -6.25 | 29.34 | 19.35 | 236.22 | 0.3979 | -744.0 | -638.0 | |
| 2.07 | 11.60 | 1.10 | 6.20 | -4.13 | 29.05 | 19.06 | 240.49 | 0.3758 | -1136.6 | -807.5 | |
| 0.81 | 1.80 | 0.43 | 0.96 | -5.09 | 29.05 | 19.05 | 238.31 | 0.3837 | -771.2 | -644.4 | |
| 14.57 | 28.23 | 7.83 | 15.17 | -5.80 | 28.97 | 18.98 | 236.65 | 0.3889 | -1051.9 | -579.8 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -4.43 | 28.87 | 18.87 | 239.54 | 0.3757 | -974.0 | -743.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -4.76 | 28.43 | 18.43 | 238.19 | 0.3723 | -903.0 | -737.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
