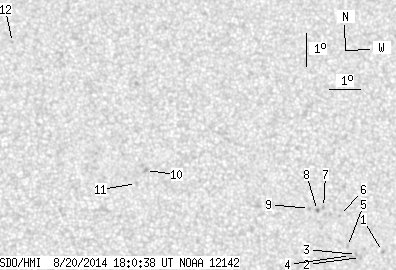

SDO HMI 2014-08-20 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.01 | 0.00 | 8.88 | 8.45 | 27.95 | 18.51 | 277.27 | 0.3192 | -440.9 | -355.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.77 | 7.14 | 31.03 | 21.59 | 272.04 | 0.3669 | -696.0 | -581.5 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 6.99 | 30.30 | 20.86 | 271.60 | 0.3551 | -704.0 | -569.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 7.09 | 30.18 | 20.73 | 271.87 | 0.3530 | -921.0 | -749.8 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 7.07 | 29.98 | 20.54 | 271.80 | 0.3498 | -851.0 | -757.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 7.35 | 29.89 | 20.45 | 272.59 | 0.3484 | -858.0 | -666.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 8.30 | 29.68 | 20.24 | 275.36 | 0.3453 | -752.0 | -545.5 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 8.56 | 29.18 | 19.73 | 276.21 | 0.3373 | -919.0 | -673.4 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 8.48 | 28.98 | 19.53 | 276.00 | 0.3340 | -1030.0 | -871.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 8.55 | 28.72 | 19.28 | 276.26 | 0.3299 | -957.0 | -694.0 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 9.88 | 23.52 | 14.08 | 283.16 | 0.2473 | 861.0 | 678.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 9.50 | 23.22 | 13.78 | 281.82 | 0.2411 | 744.0 | 563.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.89 | 19.49 | 10.05 | 306.17 | 0.2108 | 792.0 | 577.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
