SDO HMI 2014-08-20 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.63 | 145.14 | 23.25 | 79.10 | -4.86 | 31.03 | 21.59 | 241.87 | 0.4175 | 313.9 | 177.3 | |
|
previous
or next observation for the same group /

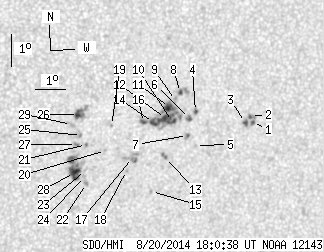

back to the solar disc SDO HMI 2014-08-20 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 9.44 | 0.50 | 5.28 | -4.67 | 34.80 | 25.36 | 246.15 | 0.4686 | 820.1 | 704.6 | |
| 0.81 | -1.00 | 0.45 | -1.00 | -4.48 | 34.73 | 25.28 | 246.46 | 0.4664 | 973.3 | 999999 | |
| 1.71 | -1.00 | 0.96 | -1.00 | -4.66 | 34.56 | 25.12 | 245.97 | 0.4652 | 1023.3 | 999999 | |
| 0.90 | 1.89 | 0.50 | 1.04 | -4.23 | 32.88 | 23.44 | 245.25 | 0.4386 | 775.8 | 651.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -5.29 | 32.92 | 23.48 | 243.15 | 0.4464 | 711.0 | 601.4 | |
| 1.35 | 3.78 | 0.74 | 2.08 | -4.44 | 32.69 | 23.25 | 244.64 | 0.4373 | 784.5 | 690.3 | |
| 0.54 | 2.52 | 0.30 | 1.39 | -4.96 | 32.64 | 23.20 | 243.51 | 0.4403 | 944.7 | 726.1 | |
| 1.17 | 6.29 | 0.64 | 3.45 | -3.62 | 32.37 | 22.92 | 246.04 | 0.4272 | 1043.0 | 764.0 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -3.86 | 32.21 | 22.77 | 245.37 | 0.4265 | 834.0 | 708.3 | |
| 2.25 | 49.63 | 1.23 | 27.14 | -4.51 | 32.13 | 22.69 | 243.93 | 0.4298 | 875.1 | 693.9 | |
| 6.02 | -10.00 | 3.29 | -10.00 | -4.07 | 32.02 | 22.57 | 244.74 | 0.4252 | 1147.6 | 999999 | |
| 8.81 | -10.00 | 4.82 | -10.00 | -4.40 | 31.89 | 22.45 | 243.90 | 0.4258 | 1083.1 | 999999 | |
| 0.36 | 2.97 | 0.20 | 1.63 | -5.61 | 31.94 | 22.49 | 241.45 | 0.4353 | 904.8 | 822.7 | |
| 3.42 | -10.00 | 1.86 | -10.00 | -4.51 | 31.50 | 22.06 | 243.26 | 0.4210 | 1012.4 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -6.65 | 31.52 | 22.08 | 238.91 | 0.4378 | 774.0 | 553.1 | |
| 1.62 | -10.00 | 0.88 | -10.00 | -4.49 | 31.17 | 21.73 | 242.93 | 0.4163 | 1005.7 | 999999 | |
| 0.00 | 9.89 | 0.00 | 5.39 | -5.56 | 30.85 | 21.41 | 240.31 | 0.4199 | 895.0 | 801.4 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -5.96 | 30.67 | 21.23 | 239.28 | 0.4207 | 722.0 | 668.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -4.54 | 30.13 | 20.69 | 241.63 | 0.4019 | 839.0 | 679.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -5.30 | 29.96 | 20.52 | 239.76 | 0.4056 | 774.0 | 554.9 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -5.09 | 29.34 | 19.89 | 239.43 | 0.3953 | -863.0 | -680.3 | |
| 0.00 | 2.34 | 0.00 | 1.27 | -6.30 | 29.38 | 19.94 | 236.91 | 0.4062 | -726.0 | -607.1 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -5.90 | 29.33 | 19.89 | 237.69 | 0.4021 | -709.0 | -476.9 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -6.08 | 29.30 | 19.86 | 237.27 | 0.4033 | -732.0 | -575.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -4.81 | 29.16 | 19.72 | 239.83 | 0.3906 | -713.0 | -653.1 | |
| 3.51 | 11.78 | 1.88 | 6.32 | -4.15 | 29.05 | 19.61 | 241.16 | 0.3837 | -1157.9 | -782.6 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -5.08 | 29.01 | 19.57 | 239.03 | 0.3907 | -888.0 | -770.5 | |
| 9.26 | 26.97 | 5.00 | 14.54 | -5.94 | 28.98 | 19.53 | 237.11 | 0.3977 | -1047.5 | -772.2 | |
| 0.00 | 3.06 | 0.00 | 1.64 | -4.45 | 28.83 | 19.39 | 240.19 | 0.3831 | -924.0 | -692.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
