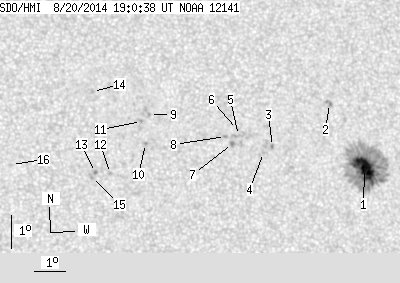

SDO HMI 2014-08-20 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.98 | 188.37 | 13.82 | 99.90 | 16.21 | 27.81 | 18.93 | 298.76 | 0.3563 | -590.1 | -366.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.98 | 159.40 | 13.82 | 84.84 | 16.04 | 28.62 | 19.74 | 297.09 | 0.3661 | -1320.7 | -416.0 | |
| 0.00 | 3.69 | 0.00 | 1.96 | 18.09 | 27.67 | 18.78 | 303.22 | 0.3674 | -704.0 | -690.0 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 16.83 | 25.64 | 16.75 | 302.79 | 0.3296 | -986.0 | -801.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 16.66 | 25.32 | 16.44 | 302.77 | 0.3238 | -857.0 | -751.8 | |
| 0.00 | 6.29 | 0.00 | 3.29 | 17.21 | 24.55 | 15.66 | 305.44 | 0.3179 | -936.0 | -656.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 17.39 | 24.53 | 15.64 | 305.96 | 0.3193 | -590.0 | -480.3 | |
| 0.00 | 2.52 | 0.00 | 1.31 | 16.97 | 24.33 | 15.44 | 305.15 | 0.3128 | -1086.0 | -913.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.19 | 24.12 | 15.23 | 306.10 | 0.3120 | -901.0 | -761.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 17.94 | 21.69 | 12.80 | 312.73 | 0.2882 | 833.0 | 674.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 17.05 | 21.49 | 12.60 | 310.68 | 0.2763 | 936.0 | 753.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.73 | 21.41 | 12.52 | 312.76 | 0.2826 | 917.0 | 715.4 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 16.16 | 20.30 | 11.41 | 310.70 | 0.2518 | 935.0 | 711.3 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 16.20 | 19.82 | 10.93 | 312.00 | 0.2462 | 1001.0 | 833.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 18.70 | 19.88 | 10.99 | 318.88 | 0.2759 | 871.0 | 660.1 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 16.08 | 19.69 | 10.80 | 311.97 | 0.2432 | 974.0 | 740.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 16.50 | 17.15 | 8.26 | 320.71 | 0.2184 | 839.0 | 594.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
