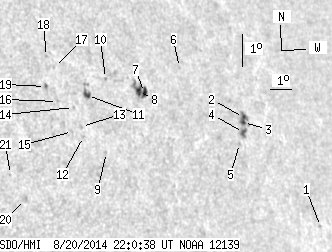

SDO HMI 2014-08-20 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.66 | 51.71 | 11.62 | 37.46 | 15.18 | 54.22 | 46.99 | 284.46 | 0.7300 | -83.4 | -113.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.98 | 11.01 | 61.38 | 54.15 | 278.62 | 0.8070 | -545.0 | -423.5 | |
| 2.34 | 7.37 | 1.84 | 5.78 | 14.65 | 58.50 | 51.28 | 283.30 | 0.7779 | -756.7 | -631.4 | |
| 2.07 | -2.00 | 1.62 | -2.00 | 14.50 | 58.45 | 51.23 | 283.11 | 0.7772 | -873.0 | 999999 | |
| 1.89 | 4.59 | 1.48 | 3.59 | 14.20 | 58.36 | 51.13 | 282.73 | 0.7760 | -756.7 | -593.1 | |
| 0.00 | 1.35 | 0.00 | 1.05 | 13.89 | 58.06 | 50.83 | 282.34 | 0.7727 | -622.0 | -519.9 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 16.44 | 55.95 | 48.72 | 285.87 | 0.7517 | -472.0 | -444.4 | |
| 3.42 | 15.73 | 2.47 | 11.33 | 15.82 | 54.10 | 46.87 | 285.27 | 0.7302 | -615.5 | -670.1 | |
| 3.60 | -7.00 | 2.59 | -7.00 | 15.87 | 53.84 | 46.61 | 285.38 | 0.7272 | -920.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 14.15 | 51.92 | 44.69 | 283.20 | 0.7027 | 338.0 | 264.1 | |
| 0.00 | 0.99 | 0.00 | 0.70 | 16.39 | 52.49 | 45.26 | 286.29 | 0.7123 | 282.0 | 209.1 | |
| 2.34 | 7.46 | 1.62 | 5.17 | 15.94 | 51.56 | 44.33 | 285.80 | 0.7006 | 675.1 | 415.9 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 14.71 | 51.05 | 43.82 | 284.11 | 0.6929 | 635.0 | 510.5 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 15.02 | 51.04 | 43.81 | 284.56 | 0.6932 | 390.0 | 355.7 | |
| 0.00 | 0.72 | 0.00 | 0.49 | 15.63 | 50.85 | 43.62 | 285.46 | 0.6917 | 463.0 | 415.9 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 14.90 | 50.62 | 43.39 | 284.45 | 0.6879 | 531.0 | 442.0 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 15.86 | 50.22 | 42.99 | 285.91 | 0.6844 | 440.0 | 435.6 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 16.91 | 50.38 | 43.15 | 287.39 | 0.6880 | 432.0 | 277.6 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 17.27 | 50.14 | 42.91 | 287.96 | 0.6858 | 682.0 | 598.7 | |
| 0.00 | 1.89 | 0.00 | 1.27 | 16.36 | 49.84 | 42.61 | 286.70 | 0.6805 | 692.0 | 644.6 | |
| 0.00 | 2.43 | 0.00 | 1.59 | 13.00 | 48.20 | 40.97 | 281.94 | 0.6552 | 640.0 | 382.4 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 13.80 | 47.75 | 40.52 | 283.23 | 0.6504 | 632.0 | 562.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
