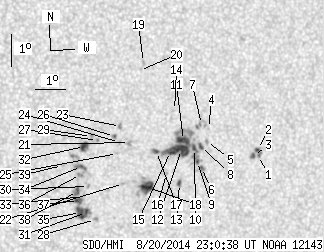

SDO HMI 2014-08-20 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.85 | 183.10 | 36.16 | 101.95 | -4.77 | 31.20 | 24.53 | 245.07 | 0.4580 | 199.8 | 132.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-20 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 7.73 | 0.31 | 4.44 | -4.79 | 34.91 | 28.23 | 248.23 | 0.5096 | 715.7 | 685.0 | |
| 1.44 | -1.00 | 0.83 | -1.00 | -4.60 | 34.87 | 28.19 | 248.54 | 0.5080 | 794.1 | 999999 | |
| 1.35 | -1.00 | 0.77 | -1.00 | -4.78 | 34.74 | 28.06 | 248.12 | 0.5072 | 945.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -3.85 | 33.16 | 26.48 | 248.65 | 0.4796 | 534.0 | 433.1 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -4.25 | 33.10 | 26.43 | 247.84 | 0.4812 | 670.0 | 522.1 | |
| 0.81 | 3.51 | 0.46 | 1.98 | -5.05 | 32.97 | 26.29 | 246.20 | 0.4841 | 765.6 | 600.4 | |
| 0.00 | 6.74 | 0.00 | 3.79 | -3.71 | 32.92 | 26.24 | 248.72 | 0.4754 | 696.0 | 620.0 | |
| 1.53 | 66.27 | 0.86 | 37.19 | -4.39 | 32.91 | 26.23 | 247.40 | 0.4793 | 705.2 | 660.5 | |
| 0.99 | -8.00 | 0.56 | -8.00 | -4.85 | 32.82 | 26.15 | 246.45 | 0.4809 | 850.9 | 999999 | |
| 2.16 | -8.00 | 1.21 | -8.00 | -4.44 | 32.70 | 26.03 | 247.13 | 0.4767 | 920.2 | 999999 | |
| 6.92 | -8.00 | 3.88 | -8.00 | -4.18 | 32.32 | 25.65 | 247.33 | 0.4697 | 1098.8 | 999999 | |
| 13.13 | -8.00 | 7.36 | -8.00 | -4.45 | 32.26 | 25.59 | 246.75 | 0.4706 | 1019.1 | 999999 | |
| 1.44 | 3.69 | 0.81 | 2.08 | -5.50 | 32.24 | 25.56 | 244.70 | 0.4770 | 757.8 | 566.8 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -3.23 | 31.99 | 25.31 | 248.94 | 0.4593 | 690.0 | 547.7 | |
| 4.59 | -8.00 | 2.56 | -8.00 | -4.49 | 31.90 | 25.22 | 246.34 | 0.4656 | 1038.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -5.17 | 31.79 | 25.11 | 244.93 | 0.4685 | 744.0 | 670.5 | |
| 1.26 | 3.78 | 0.70 | 2.10 | -4.47 | 31.42 | 24.75 | 245.97 | 0.4588 | 926.9 | 762.1 | |
| 9.71 | 17.80 | 5.42 | 9.93 | -5.57 | 31.17 | 24.49 | 243.56 | 0.4626 | 990.9 | 607.6 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -1.70 | 30.92 | 24.25 | 251.30 | 0.4352 | 858.0 | 629.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -1.94 | 30.79 | 24.12 | 250.68 | 0.4345 | 150.0 | 299.8 | |
| 0.00 | 3.42 | 0.00 | 1.89 | -4.14 | 30.51 | 23.83 | 245.78 | 0.4438 | 150.0 | 30.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -5.40 | 30.36 | 23.68 | 243.09 | 0.4503 | -515.0 | -380.3 | |
| 0.00 | 2.52 | 0.00 | 1.38 | -3.63 | 30.20 | 23.52 | 246.55 | 0.4360 | -829.0 | -703.0 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -4.13 | 30.18 | 23.50 | 245.50 | 0.4389 | -612.0 | -382.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -4.46 | 30.12 | 23.45 | 244.75 | 0.4404 | -604.0 | -347.0 | |
| 0.54 | 2.25 | 0.30 | 1.24 | -3.93 | 30.01 | 23.33 | 245.74 | 0.4352 | -815.7 | -721.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -4.03 | 29.45 | 22.77 | 244.98 | 0.4279 | -681.0 | -602.6 | |
| 0.00 | 2.25 | 0.00 | 1.24 | -6.48 | 29.47 | 22.80 | 240.03 | 0.4463 | -731.0 | -571.9 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -3.89 | 29.25 | 22.57 | 245.06 | 0.4241 | -852.0 | -715.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -5.44 | 29.20 | 22.52 | 241.79 | 0.4345 | -758.0 | -617.0 | |
| 2.25 | 14.48 | 1.24 | 7.98 | -6.25 | 29.17 | 22.49 | 240.14 | 0.4403 | -825.2 | -673.5 | |
| 4.41 | 7.10 | 2.41 | 3.88 | -4.19 | 29.02 | 22.35 | 244.20 | 0.4230 | -1014.6 | -768.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -5.74 | 29.08 | 22.40 | 241.04 | 0.4352 | -487.0 | -416.5 | |
| 0.81 | 9.98 | 0.44 | 5.45 | -4.81 | 28.95 | 22.27 | 242.81 | 0.4263 | -843.6 | -796.1 | |
| 6.29 | -31.00 | 3.47 | -31.00 | -6.24 | 28.97 | 22.29 | 239.93 | 0.4375 | -949.4 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.48 | -5.05 | 28.92 | 22.24 | 242.28 | 0.4278 | -856.0 | -755.3 | |
| 2.79 | 11.06 | 1.53 | 6.07 | -5.86 | 28.89 | 22.21 | 240.59 | 0.4334 | -1021.0 | -778.5 | |
| 1.89 | -37.00 | 1.04 | -37.00 | -5.58 | 28.84 | 22.16 | 241.11 | 0.4306 | -1114.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -4.75 | 28.32 | 21.64 | 242.25 | 0.4171 | -685.0 | -507.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
